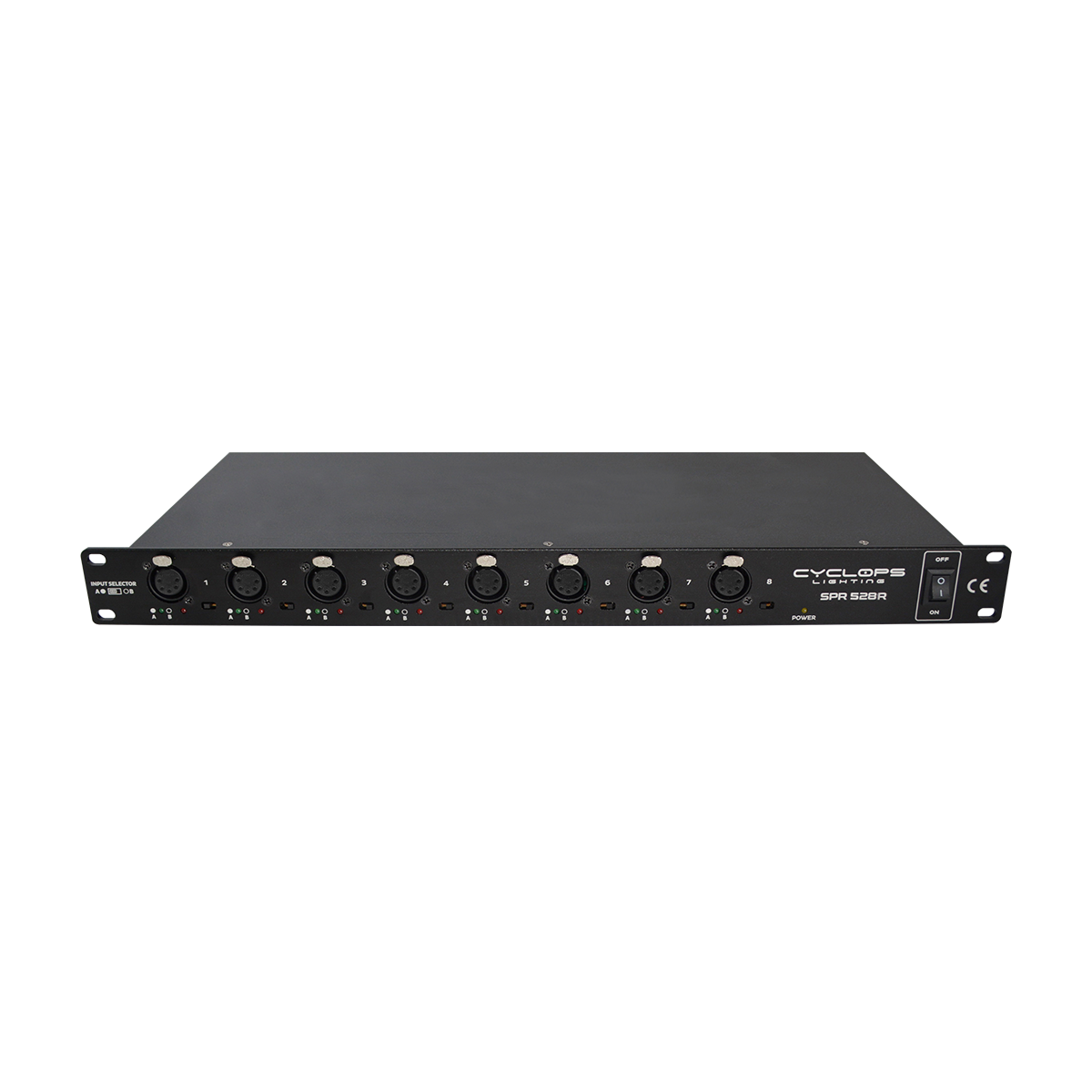

splitter-spr-528R-

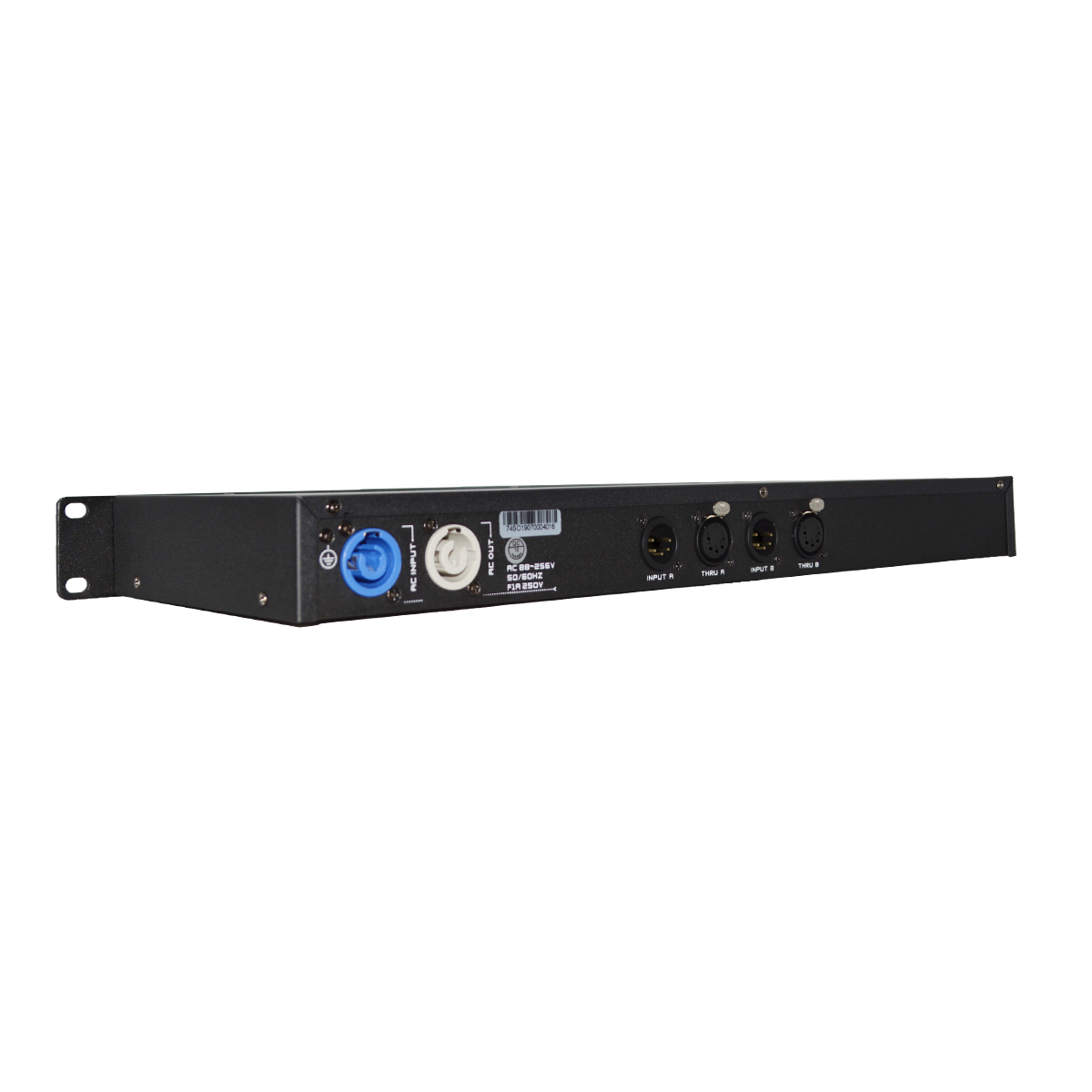

splietter-spr-528-back-side

SPR 528R

SPR 528R

5 pin Rack Mounted RDM/DMX Splitter

The SPR 528R is a 1U 19-inch rack-mounted DMX/RDM splitter, designed to buffer, multiply, isolate, and protect your console’s DMX outputs. Offering both RDM and DMX compatibility with 5-pin connectors, it provides 2 independent inputs/thru and 8 optically isolated outputs. Each output can be individually assigned to either input, ensuring flexible and reliable data distribution for complex lighting networks. This splitter is built to maintain signal integrity and support seamless integration in any live or studio environment

SKU: SPR528R Category: Data

Specifications
Downloads

FEATURES

Split and boost the RDM/DMX signal
Power and data optically isolated RDM/DMX ports
High voltage protection
Selectable input source for each RDM/DMX output
High brightness Power and Data Status LED indicators
Individual input selection LED indicators per output
Front panel power on/off switch

CONTROL & PROGRAMMING

Pass-Thru: RDM/DMX Pass-Thru
Input selector switches
Power on/off switch
Power and data LED indicators

CONNECTIONS

Data inputs: 1 x Neutrik 5 pin XLR
Data thru: 1 x Neutrik 5 pin XLR
Data outputs: 8 x Neutrik 5 pin XLR
Power connection: powerCon input and output

ELECTRICAL

Input voltage: AC 88-256V 50/60Hz

PHYSICAL

Dimensions: 482 x 173 x 46 mm
Net Weight: 1.7 Kg
Color: Black
