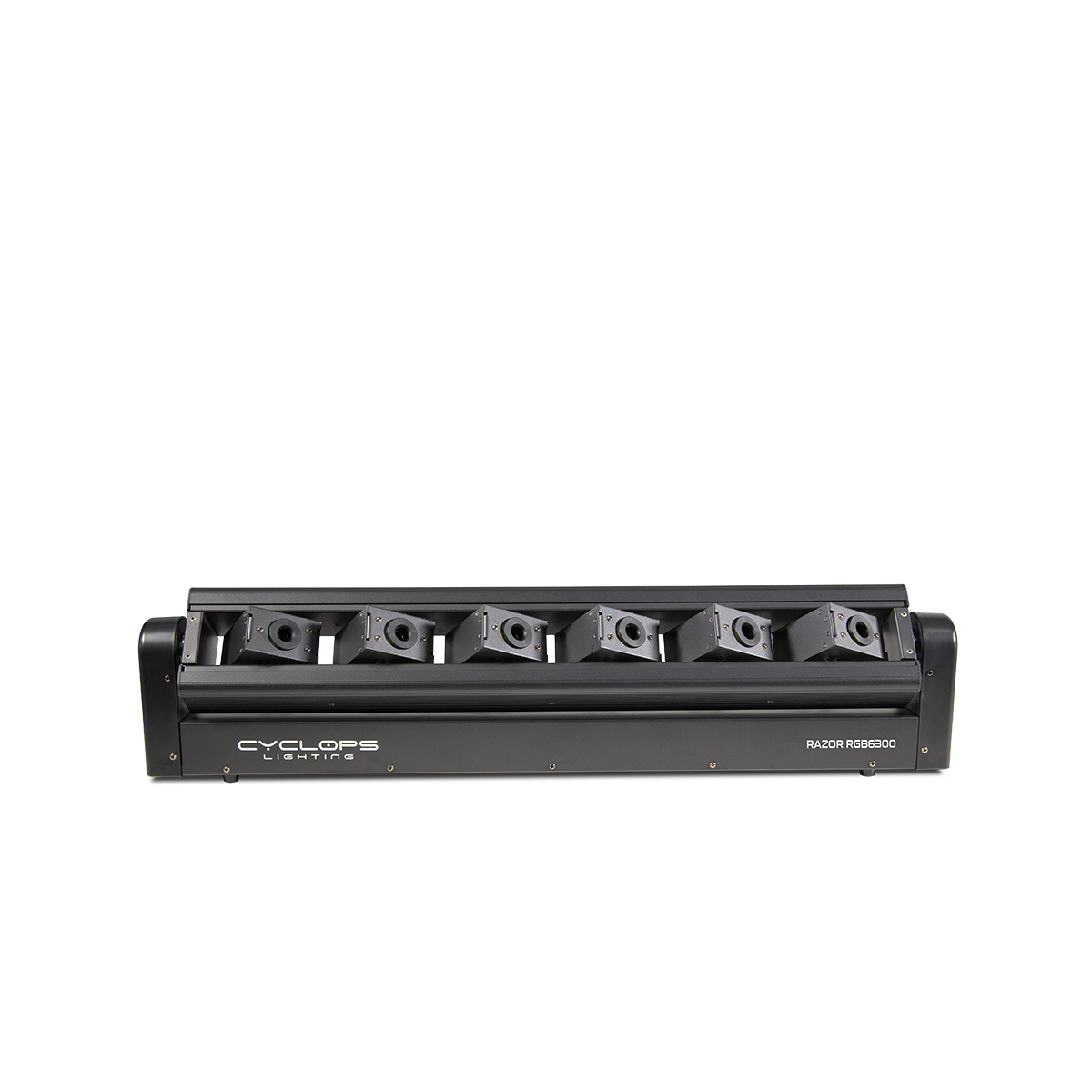

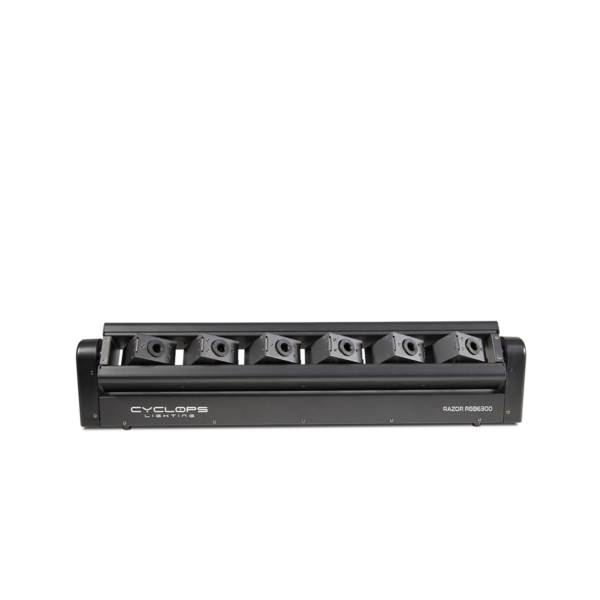

RAZOR

RAZOR

Rotating Laser Bar with Individual Diode Pan

Razor is a range of powerful moving head diode rotating laser bars designed to create striking visual effects for live events, stages, nightclubs, TV shows, and more. Featuring various laser color options, the Razor B6500 delivers bright blue laser beams with six 500mW blue beam outlets, while the Razor R6500 provides vivid red beams with six 500mW red beam outlets, perfect for creating intense, colorful projections.



For more dynamic color mixing, the Razor RGB6300 and Razor RGB61000 bring RGB capabilities to the stage: the RGB6300 offers six 300mW RGB beam outlets, while the RGB61000 amps it up with six 1000mW RGB outlets, delivering rich and broad color mixing effects. Each laser bar in the Razor series is designed to create large fans of laser beams with sweeping projections, making them an ideal choice for high-energy performances and professional stage productions that demand both power and precision in their visual effects.

SKU: N/A Categories: ,

LASER

  • Source:

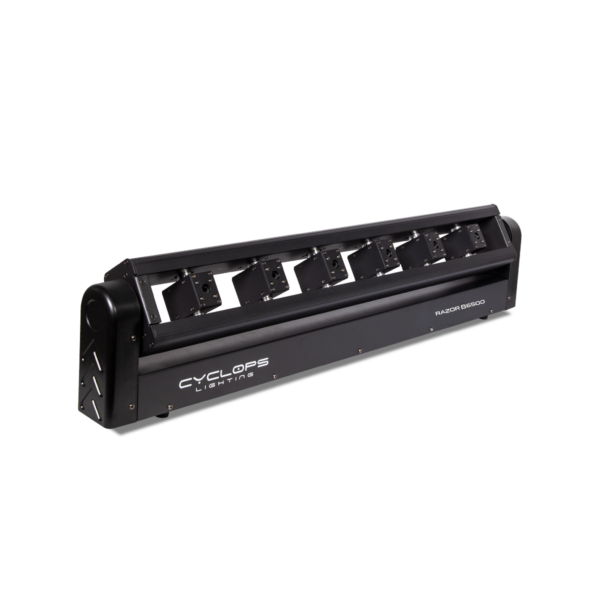

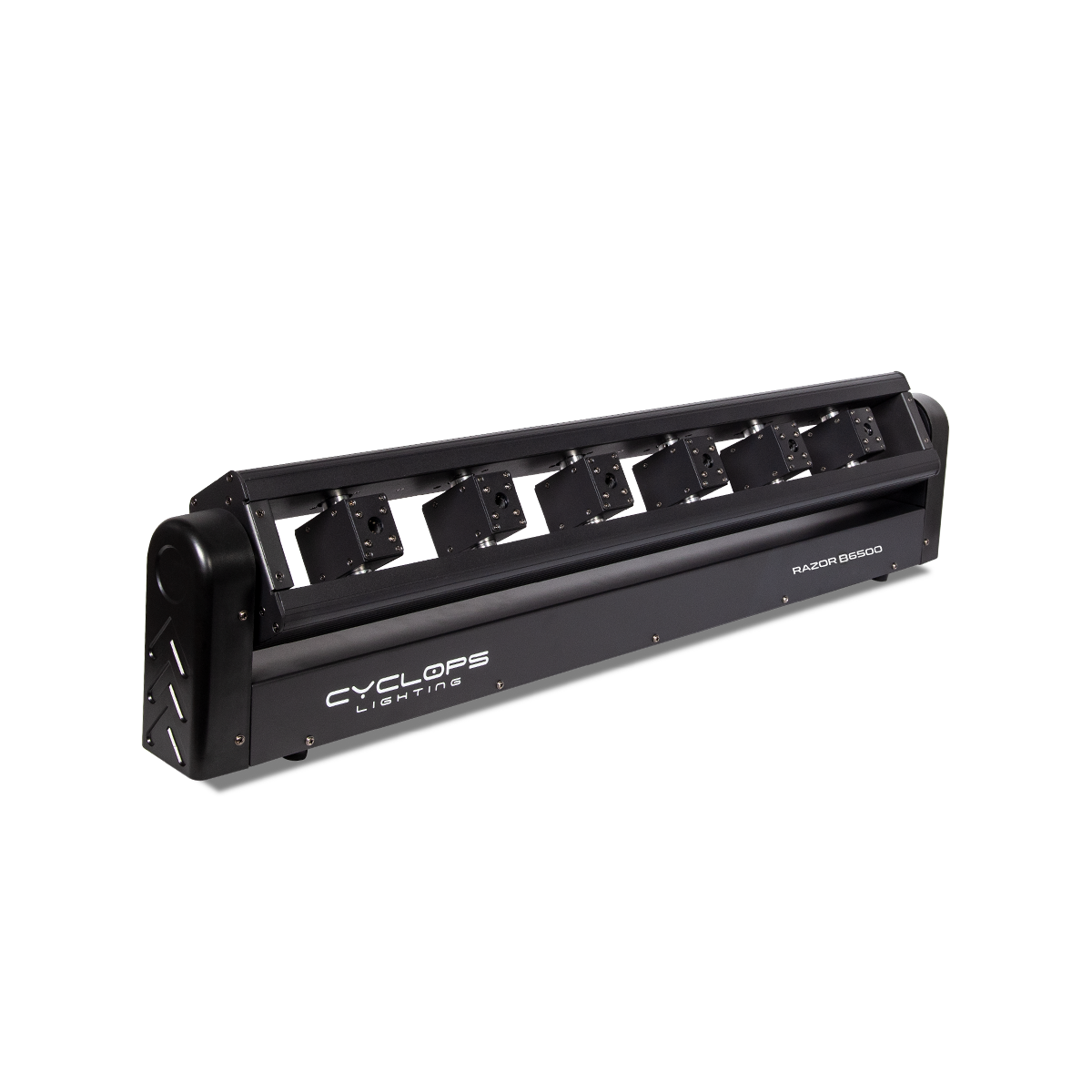

    • Razor B6500: 6 x 500 mW Diodes (Blue)

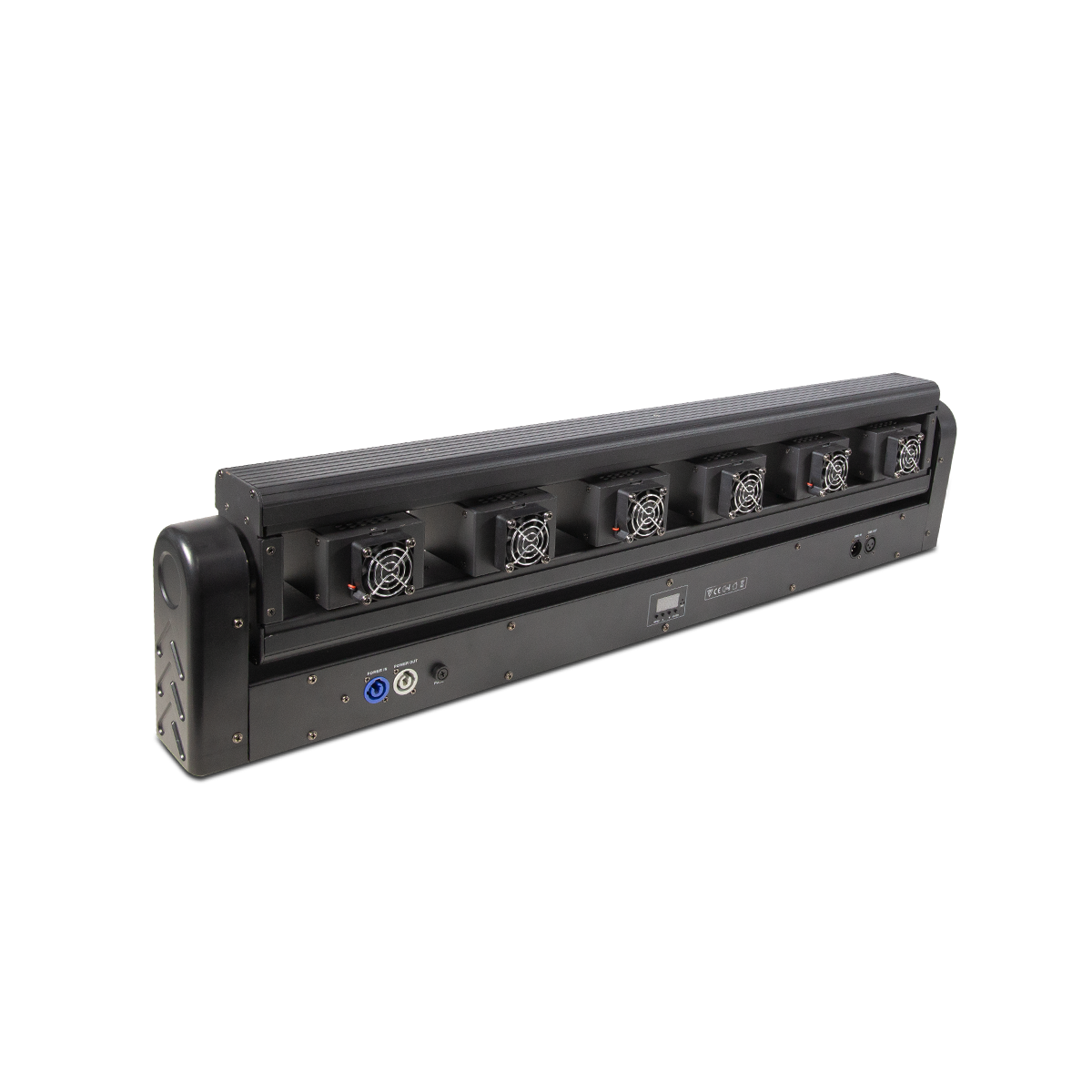

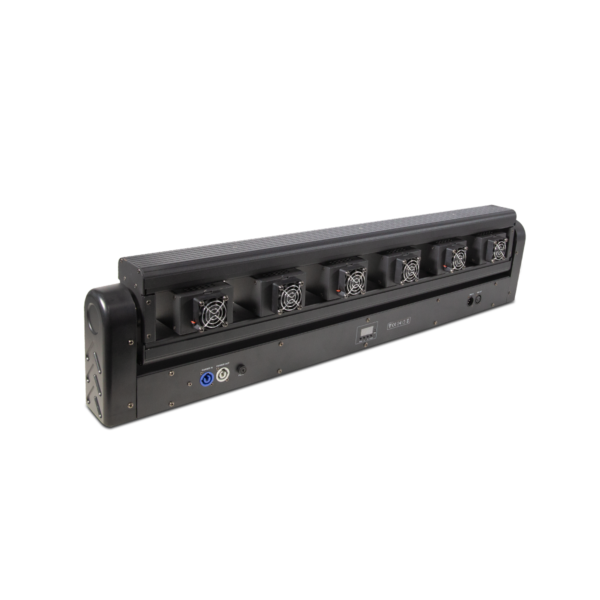

    • Razor RGB6300: 6 x 300 mW Diodes (RGB – Red: 100mW @ 638nm, Green: 50mW @ 515nm, Blue: 150mW @ 450nm)

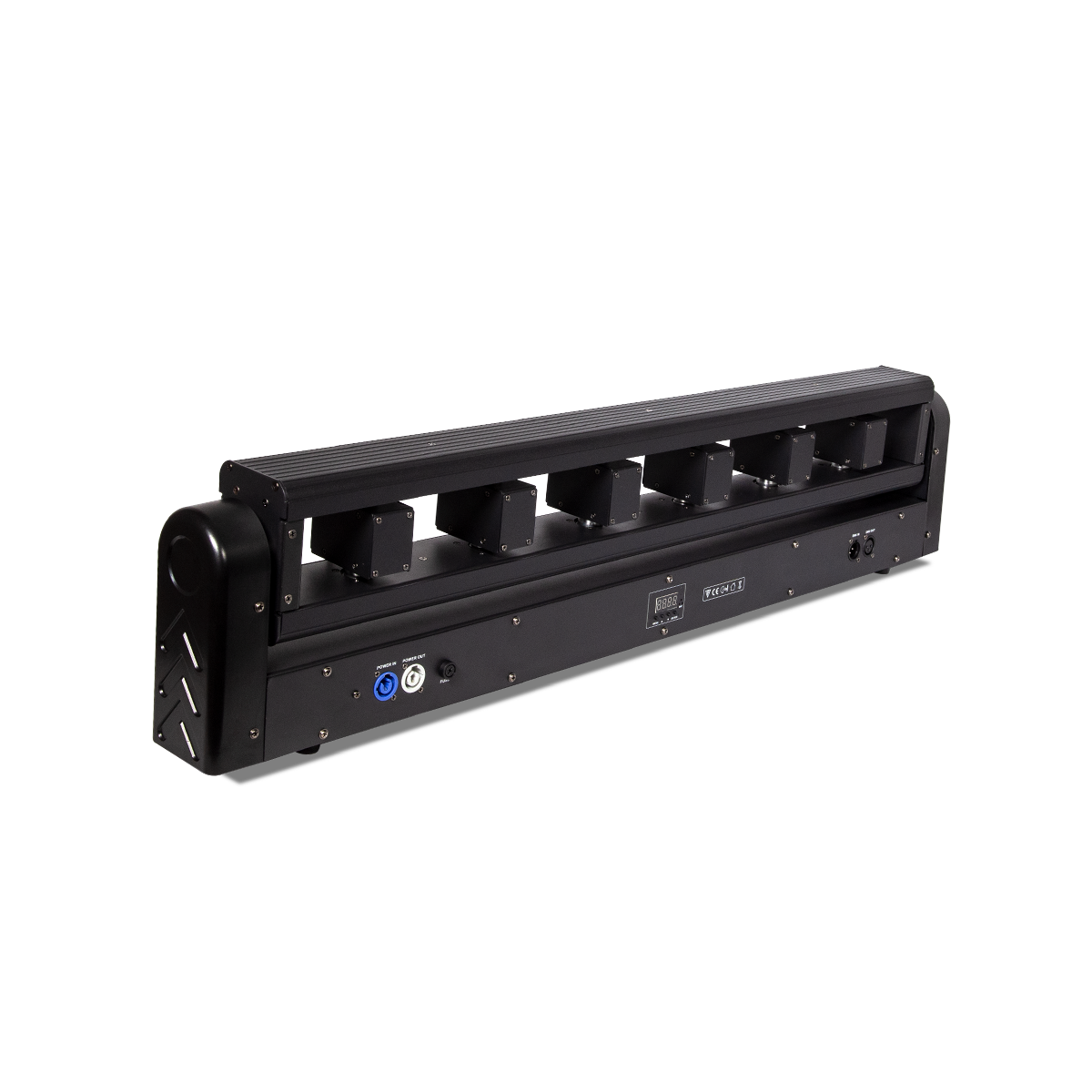

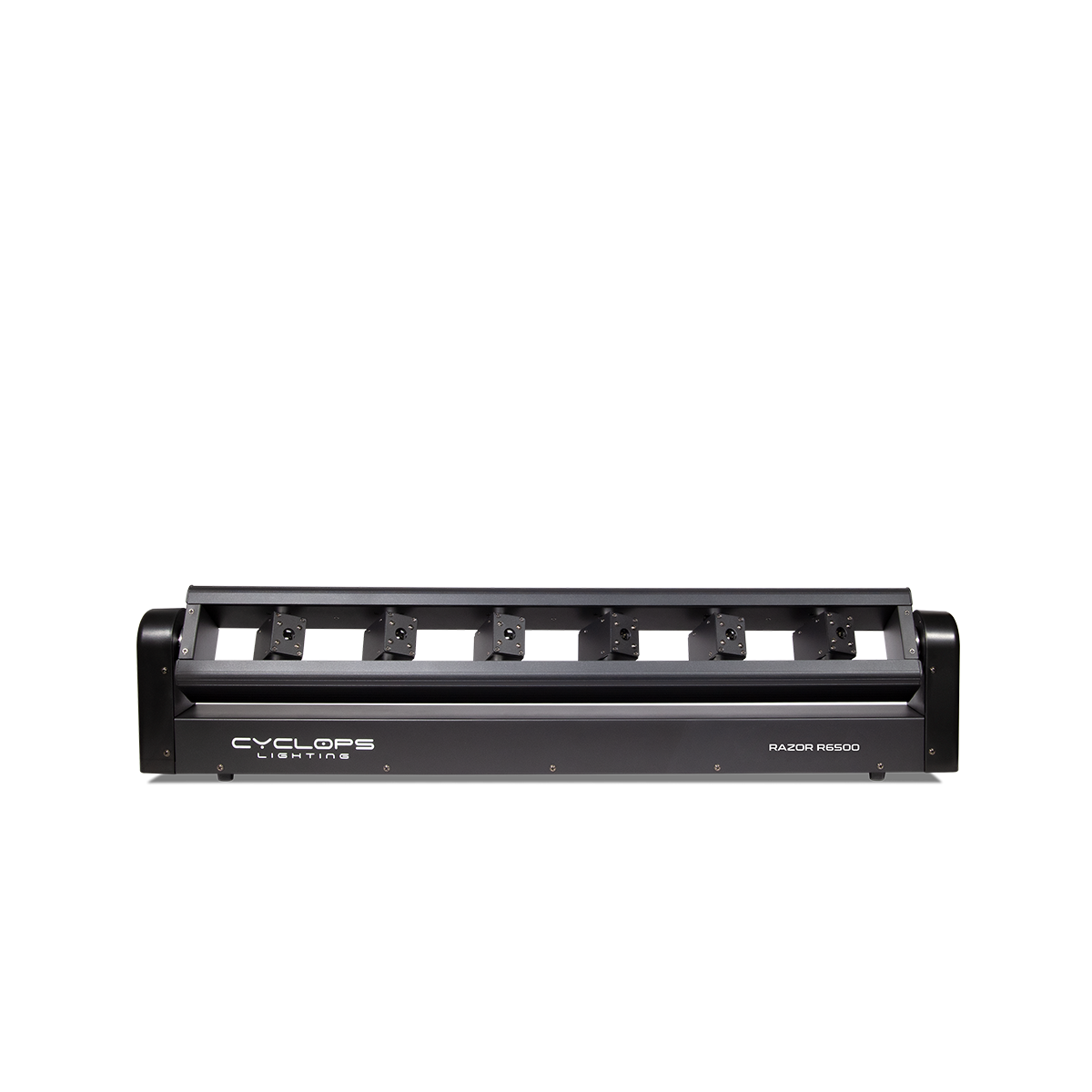

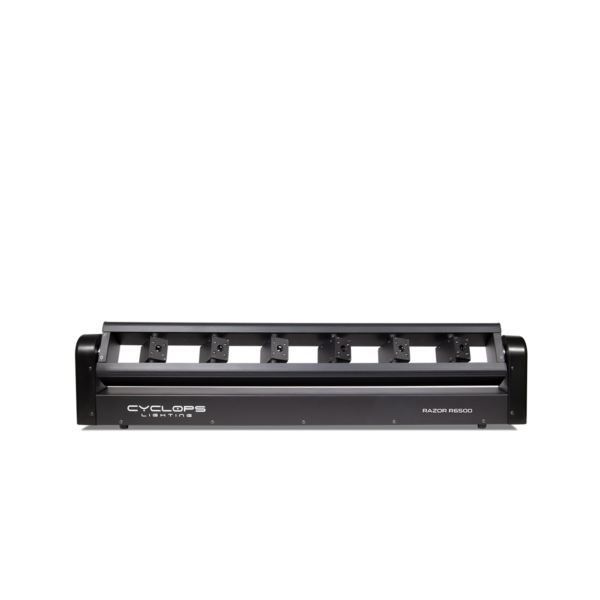

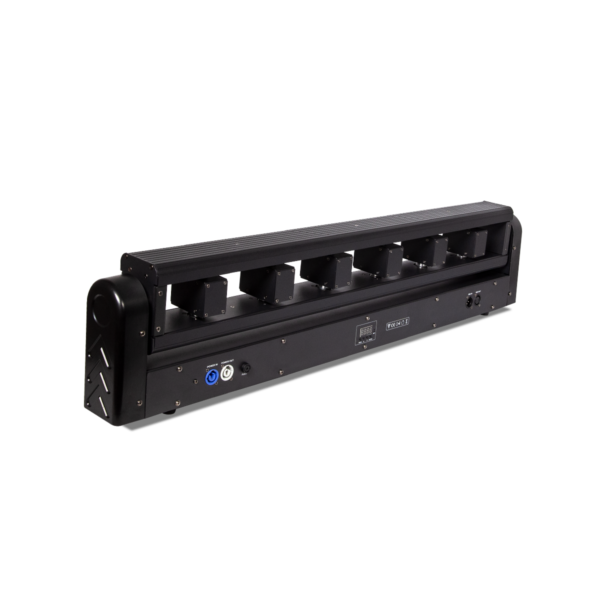

    • Razor R6500: 6 x 500 mW Diodes (Red @ 638nm)
  • Power:
    • Razor B6500: 3 watts
    • Razor RGB6300: 1.8 watts
    • Razor R6500: 3 watts
  • Beam Size: 3.5cm at 3m distance (All models)
  • Laser Safety: Class 3B (All models)
  • Life Expectancy: 2000 hrs (All models)

DYNAMIC EFFECTS

  • Individual Diode Output Control
  • Individual Diode Pan
  • Electronic Strobe: 0-23 Hz
  • Built-in Dynamic Macros
  • Color Mixing: RGB (Razor RGB series)

CONTROL & PROGRAMMING

  • Control Protocols: DMX, Auto, Sound, Master-Slave
  • Display: LED display with 4 control buttons
  • DMX Channels:
    • Razor B6500: 9, 19-1, 19-2 CHs
    • Razor RGB6300: 9, 19-1, 19-2, 32 CHs
    • Razor R6500: 9, 19-1, 19-2 CHs

MOVEMENT

  • Pan: 240°
  • Tilt: 90°

ELECTRICAL

  • Input Voltage: AC100-240V/50-60Hz
  • Power Consumption:
    • Razor B6500: 90 watts
    • Razor RGB6300: 120 watts
    • Razor R6500: 90 watts

CONNECTIONS

  • DMX Connections: 3 Pin XLR In/Out Male and Female
  • Power Connections: PowerCon In/Out

PHYSICAL

  • Dimensions:
    • Razor B6500: 1000 x 129 x 230mm
    • Razor RGB6300: 1000 x 146.6 x 223mm
    • Razor R6500: 1000 x 129 x 230mm
  • Net Weight:
    • Razor B6500: 12.9 kg
    • Razor RGB6300: 14.2 kg
    • Razor R6500: 12.9 kg
  • Color: Black
  • IP Rating: 20
  • Operating Temperature: 10°C to 40°C
