PR 300

300 watts Warm White LED Profile

The PR 300 offers versatile, high-performance LED profile fixtures designed to meet the demanding needs of theatres, studios, and event applications.

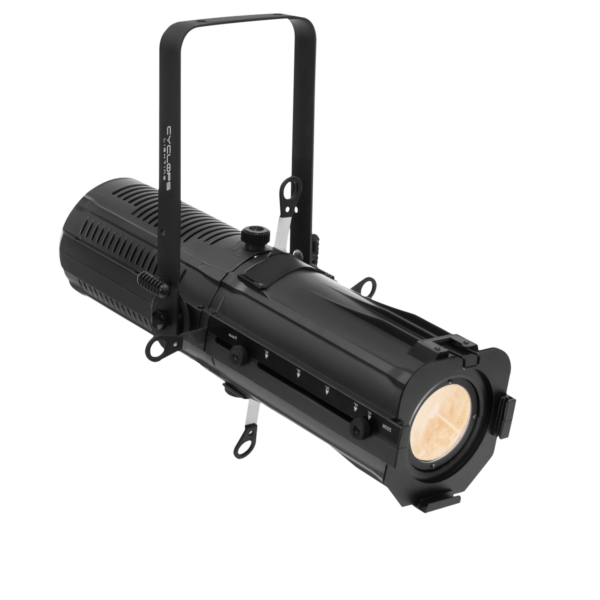

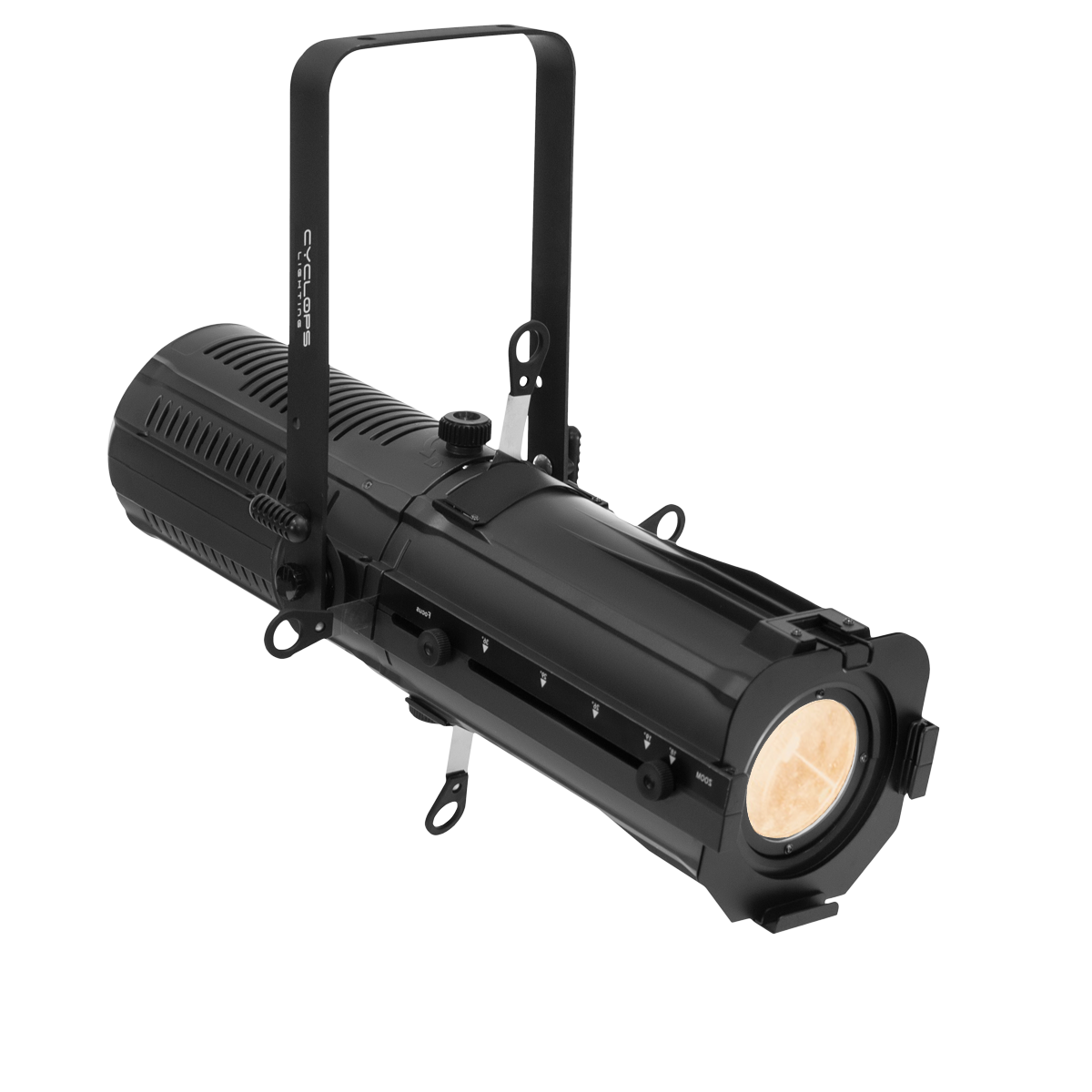

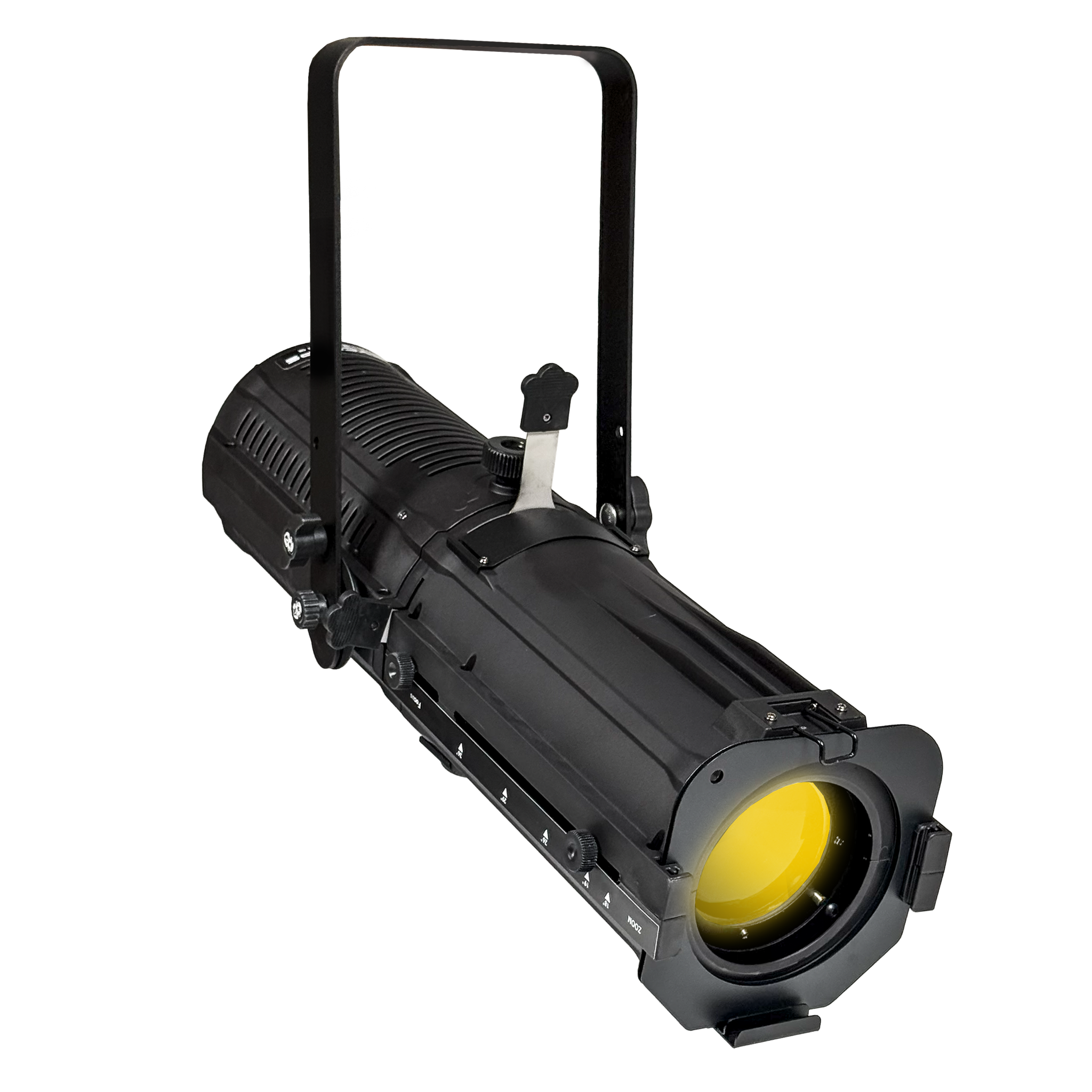

The PR 300W is a 300W Warm White LED profile (3200K), providing a high CRI of 97, ensuring exceptional color rendering for a wide range of applications. Its flat, even field of light and crisp pattern projection make it an ideal alternative to traditional 1KW Tungsten Halogen lamps. An optional Fresnel lens with barn doors can be added for an even wash from the same LED engine. Available in a kit of 1 flight case, 6 profiles, 6 adapter Fresnel lenses, and barndoors.

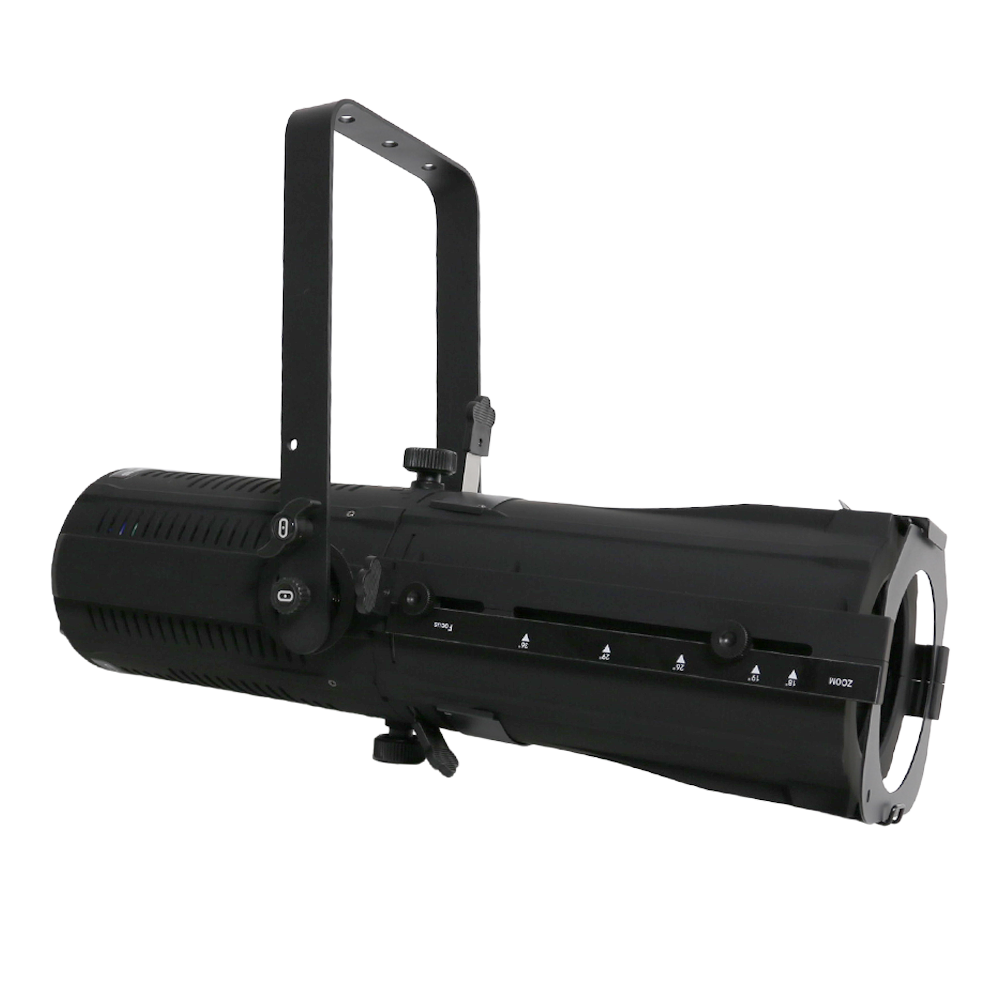

The PR 300T, a 600W Tunable White LED profile, offers full color temperature flexibility from 2800K to 6500K, providing precise color adjustments to match any lighting scenario. With a high CRI of 96, it ensures superior color reproduction, especially for camera work. Like the PR 300W, it can be outfitted with a Fresnel lens and barn doors for a smooth wash effect. This fixture is ideal for studios and theatres requiring both power and tunability.

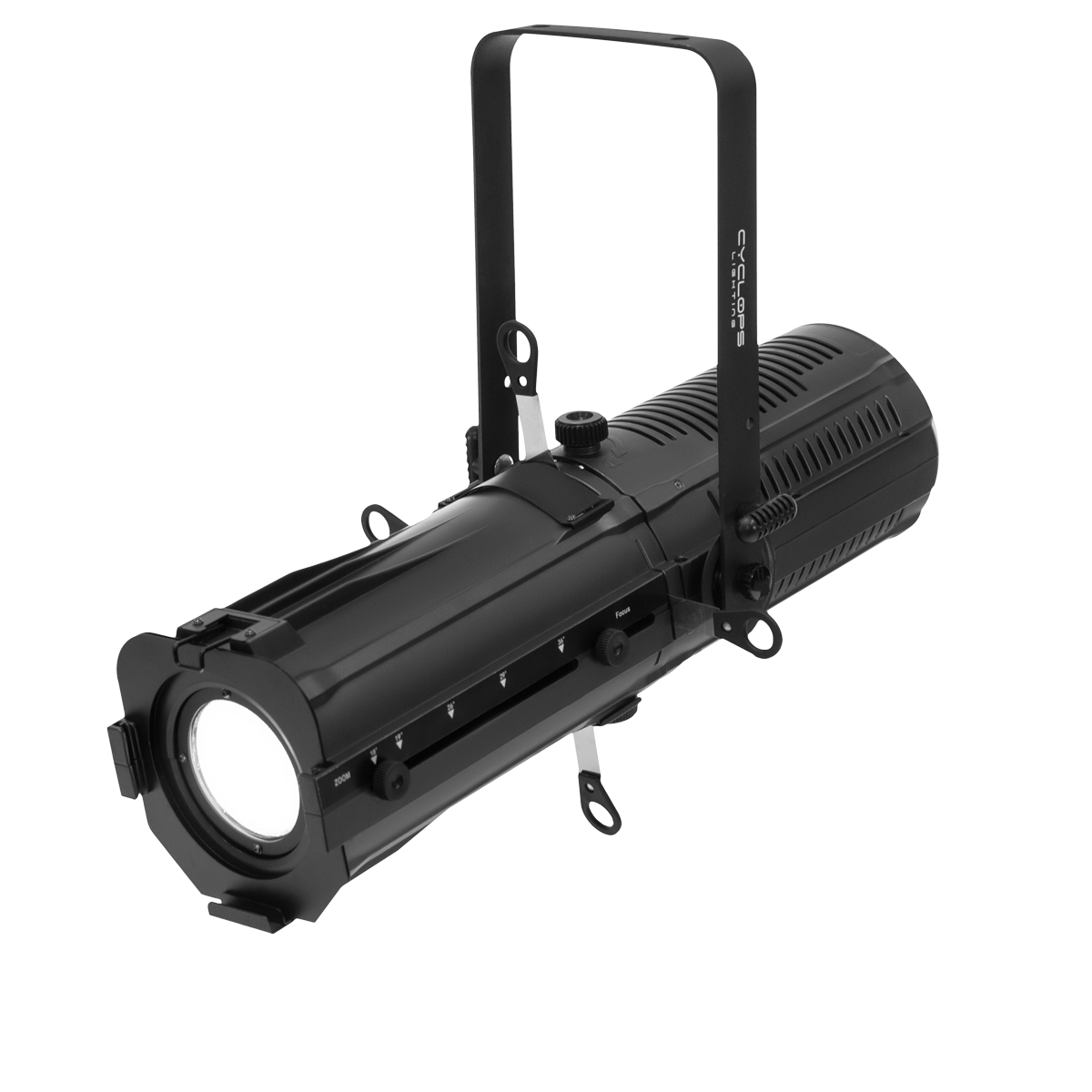

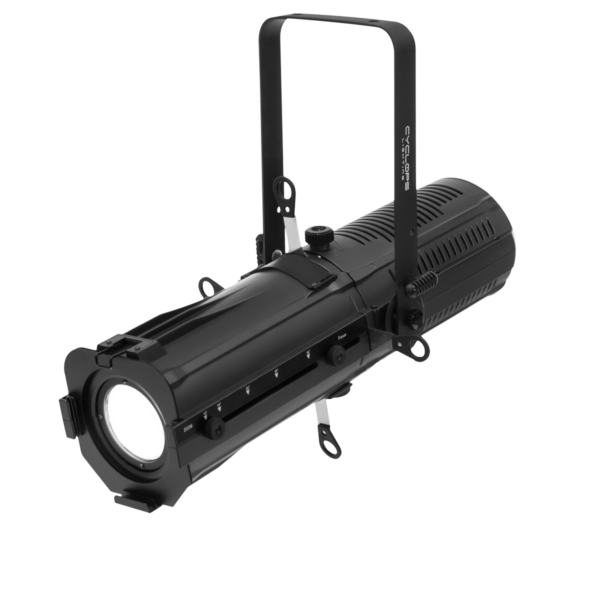

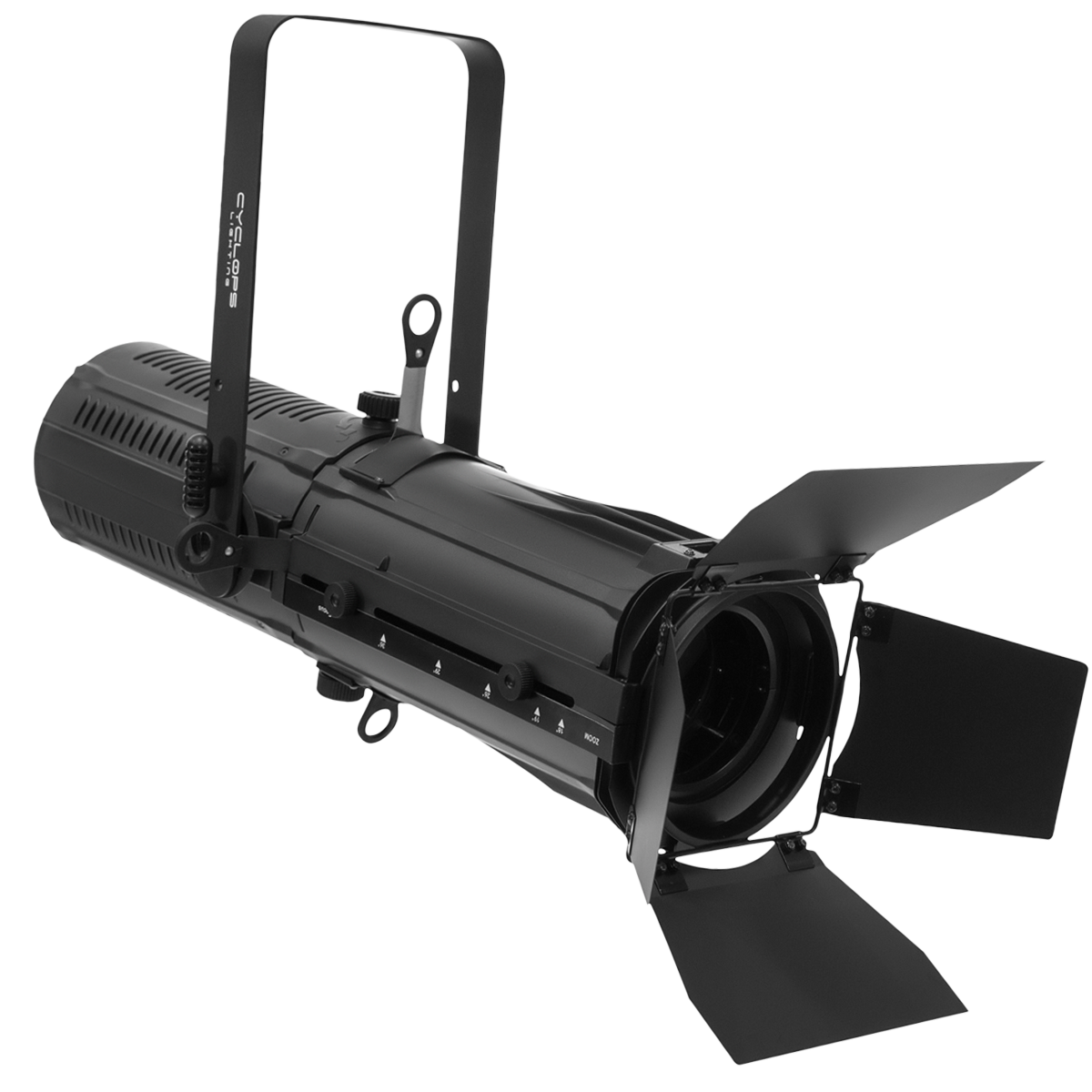

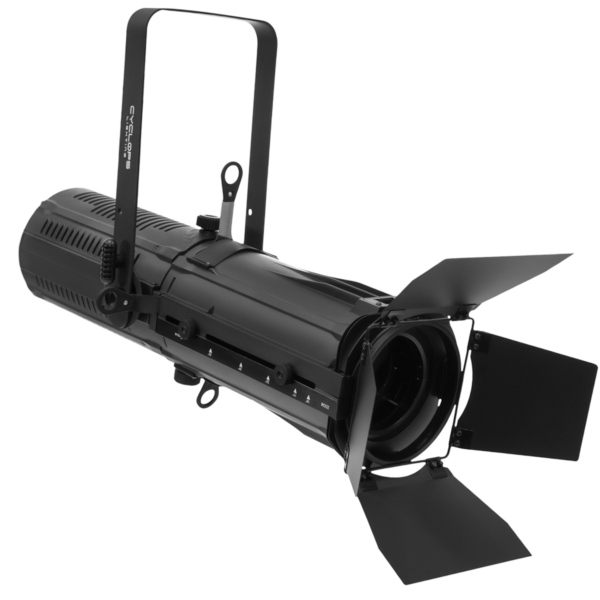

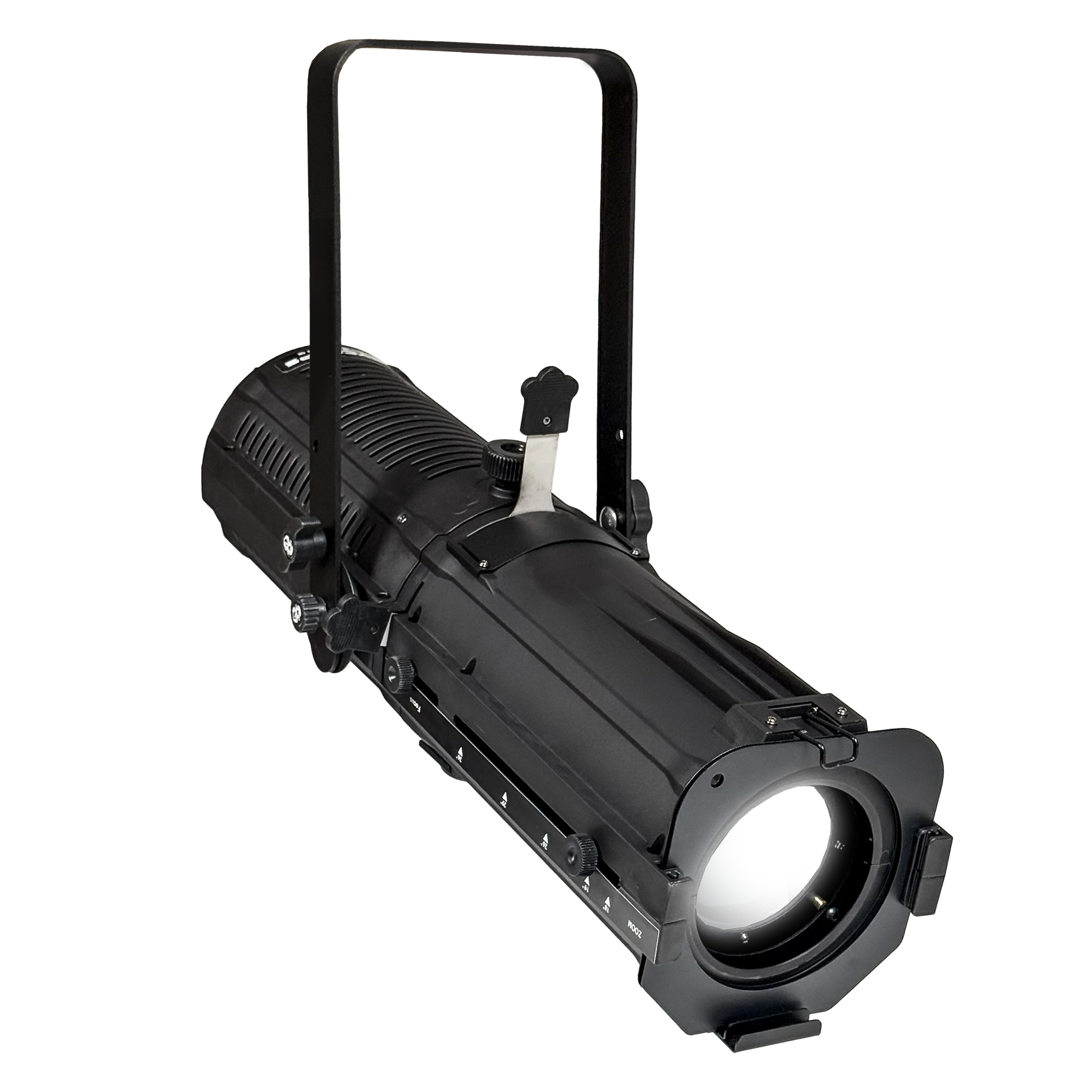

Finally, the PR 300C is a 300W Cool White LED profile (5600K), offering the same high CRI of 97 and a consistent, flat field of light as the PR 300W. Its cooler color temperature makes it ideal for applications requiring daylight-balanced lighting, and like the other two models, it can be paired with a Fresnel lens and barn doors for an even wash. Available in the same kit configuration, this fixture offers the same flexibility and reliability as the PR 300W in a cooler temperature range.

Together, these fixtures combine performance, color accuracy, and versatility, ensuring that lighting professionals have the tools they need to create perfect lighting for every occasion.

SKU: N/A Categories: ,

SOURCE

  • Light Source:
    • PR 300W: 300 Watts Warm White COB LED
    • PR 300C: 300 Watts Cool White COB LED
    • PR 300T: 600 Watts COB LED (300W Warm White + 300W Cool White)
  • LED Life Expectancy: 50,000 hours
  • Color Temperature:
    • PR 300W: 3200K (Warm White)
    • PR 300C: 5600K (Cool White)
    • PR 300T: 2800K-6500K (Tunable White)
  • CRI:
    • PR 300W: 97, R9 ≥ 90
    • PR 300C: 97, R9 ≥ 90
    • PR 300T: 96, R9 ≥ 90
  • TLCI: 98

OPTICAL SYSTEM

  • Zoom Range:
    • PR 300W: 18° to 38° or 30° to 60°
    • PR 300C: 18° to 38°
    • PR 300T: 18° to 38°
  • Light Output:
    • PR 300W: 29,000 Lux @ 2m @ 18°
    • PR 300C: 29,000 Lux @ 2m @ 18°
    • PR 300T: 14,000 Lux @ 2m @ 18°
  • Optional Fresnel Lens Adapter:
    • PR 300W: 25°-50° (PMMA)
    • PR 300C: 25°-50° (PMMA)
    • PR 300T: 25°-50° (PMMA)
  • Optional Iris and Gobo Holder
  • Gobo Size (PR 300T): OD = 58mm, ID = 50mm

KEY FEATURES

  • Dimmer Curves: 5
  • Dimmer: 16-bit
  • Strobe Function
  • Video Flicker-Free with Selectable PWM
  • Intelligent Temperature Control
  • Silent Operation

CONTROL & PROGRAMMING

  • Control Protocols: Rotary, DMX, RDM
  • Control Channels:
    • PR 300W: 1, 2, 3 CHs
    • PR 300C: 1, 2, 3 CHs
    • PR 300T: 2, 4, 5 CHs

ELECTRICAL

  • Input Voltage:
    • PR 300W: AC100-240V/50-60Hz
    • PR 300C: AC100-240V/50-60Hz
    • PR 300T: 100-240V/50-60Hz

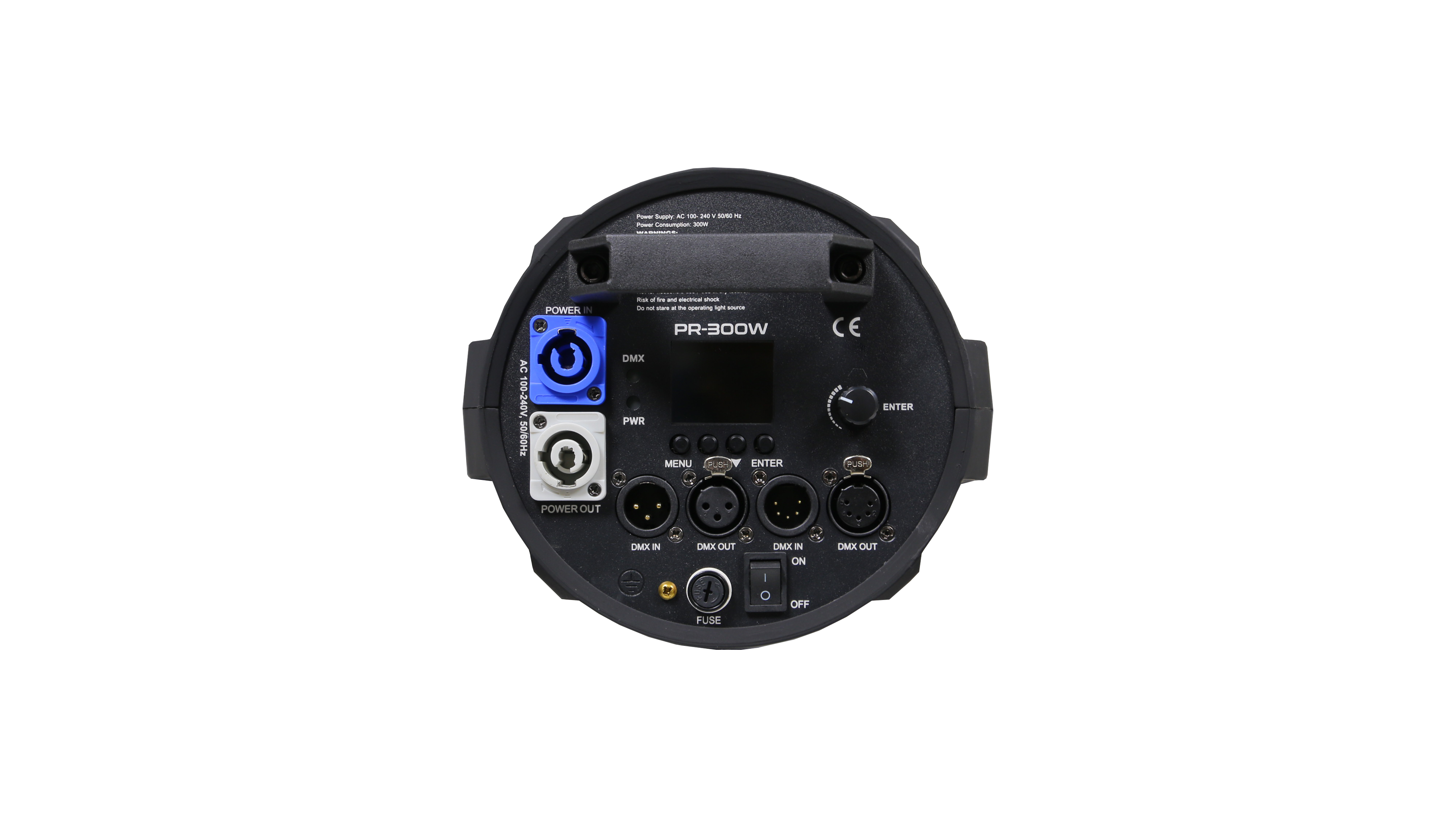

CONNECTIONS

  • DMX Connections: 3-pin and 5-pin XLR In/Out (male and female)
  • Power Connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 745 x 294 x 294 mm
  • Weight: 8.7 kg (including lens)
  • Housing Color: Black
  • IP Rating: 20
  • Operating Temperature: -5°C to 45°C
