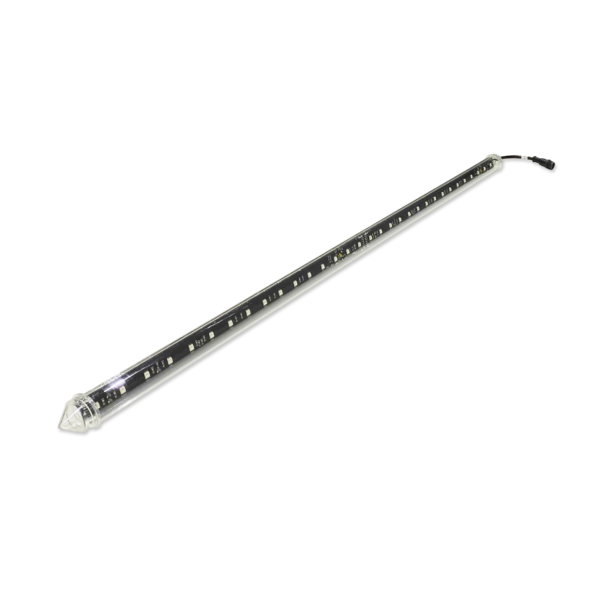

pixitube 16 ic

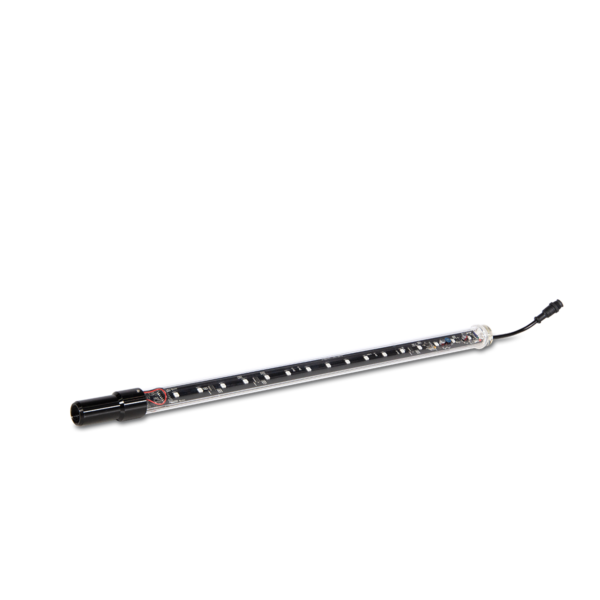

pixitube-2

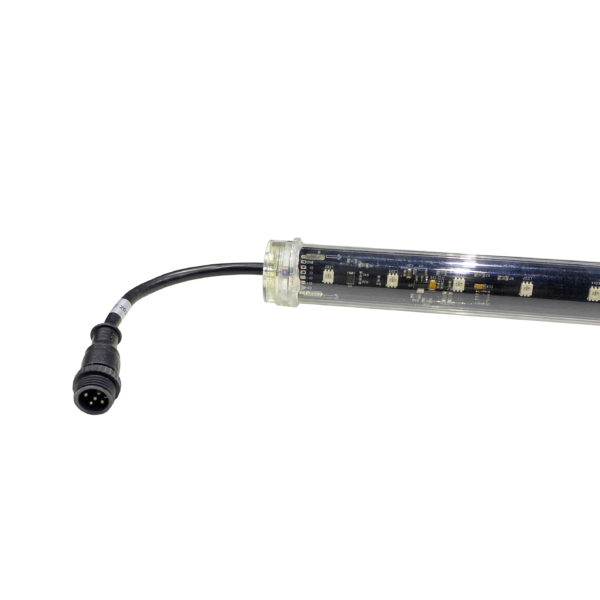

pixitube ic back
pixitube ic on

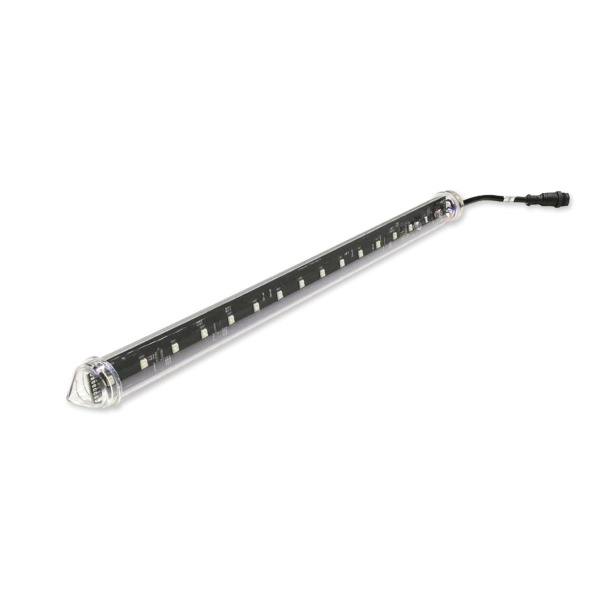

pixitube 8 ic

PIXITUBE

PIXITUBE

DMX-Controlled 3D Clear Tube for Stunning Lighting Effects

The PixiTube offers a stunning range of DMX-controlled 3D clear tubes designed to elevate any indoor event, from clubs to stage productions.



Available in four variations—PixiTube 8-IC, PixiTube 16-IC, PixiTube 24-IC, and PixiTube 32-IC—each tube is equipped with high-quality SMD5050 RGB LEDs, offering 360° lighting effects and pixel control ranging from 8 to 32 individual segments. These versatile tubes can be suspended in a grid formation to create dynamic, immersive visual displays, making them the perfect centerpiece for creating striking visual effects in any setting. Whether you’re looking for a smaller 8-pixel design or the expansive 32-pixel option, the PixiTube Series delivers bright, customizable lighting that transforms any space into a captivating visual experience.

Clear
SKU: PT5IC24RGB6416100030-1 Category:

Light Source:

  • PixiTube 8-IC: 32 SMD5050 RGB
  • PixiTube 16-IC: 64 SMD5050 RGB
  • PixiTube 24-IC: 96 SMD5050 RGB
  • PixiTube 32-IC: 128 SMD5050 RGB

Optical System:

  • Cover: Clear
  • View Angle: 360°

Control & Programming:

  • Pixels Control:
    • PixiTube 8-IC: 8
    • PixiTube 16-IC: 16
    • PixiTube 24-IC: 24
    • PixiTube 32-IC: 32
  • Color Mixing: RGB
  • Control Protocols: DMX
  • Control Channels:
    • PixiTube 8-IC: 24 CHs
    • PixiTube 16-IC: 48 CHs
    • PixiTube 24-IC: 72 CHs
    • PixiTube 32-IC: 96 CHs
  • Address Settings: Manual

Electrical:

  • Input Voltage: 24V
  • Power Consumption:
    • PixiTube 8-IC: 5 watts
    • PixiTube 16-IC: 11 watts
    • PixiTube 24-IC: 15 watts
    • PixiTube 32-IC: 20 watts

Connections:

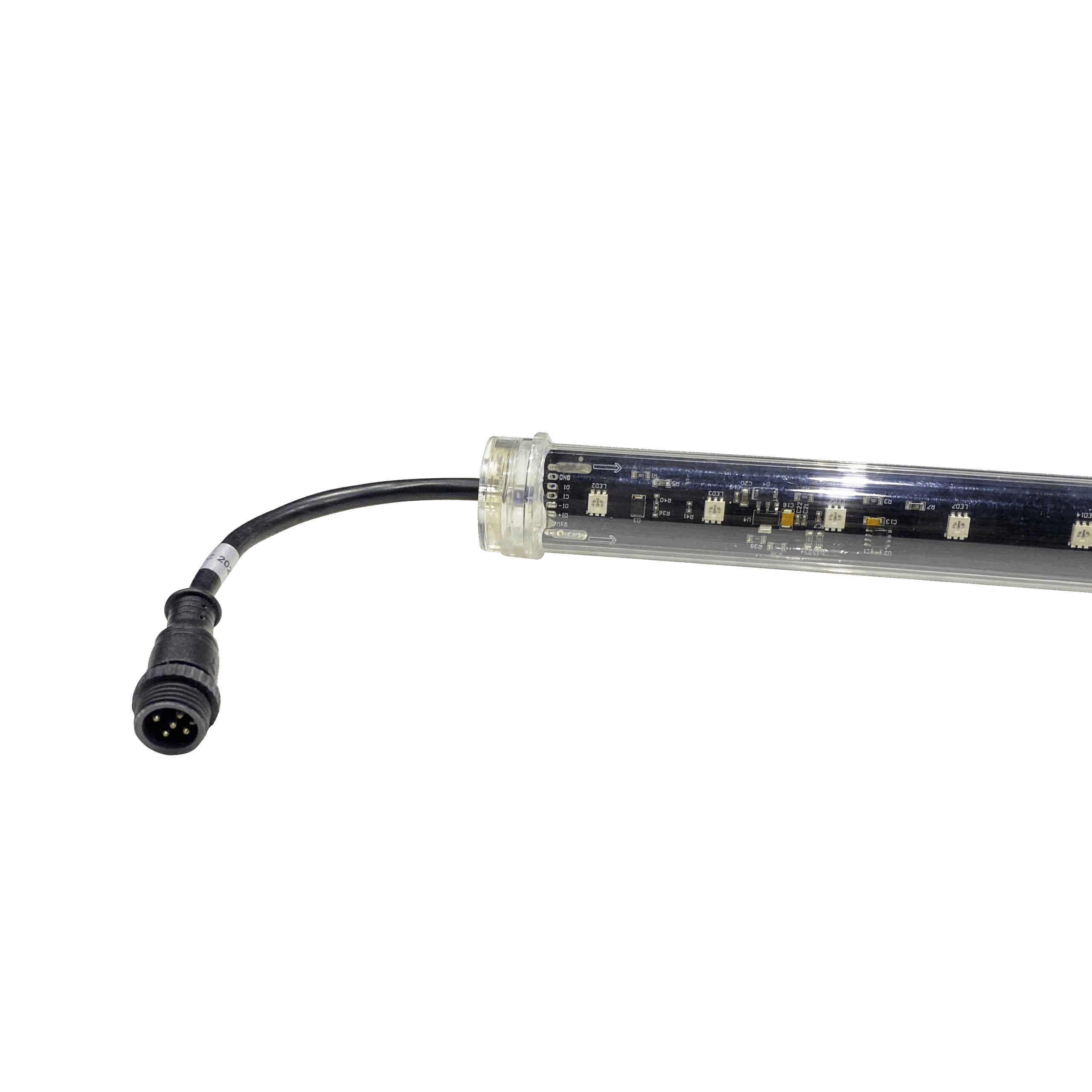

  • Power & Data Connection: 15cm 5-pin male connection

Physical:

  • Diameter: 35.5mm
  • Length:
    • PixiTube 8-IC: 518mm
    • PixiTube 16-IC: 1018mm
    • PixiTube 24-IC: 1518mm
    • PixiTube 32-IC: 2018mm
  • IP Rating: 20
  • Operating Temperature: -20℃ to 50℃
