PIXIDOT STRING-OD

PIXIDOT STRING-OD

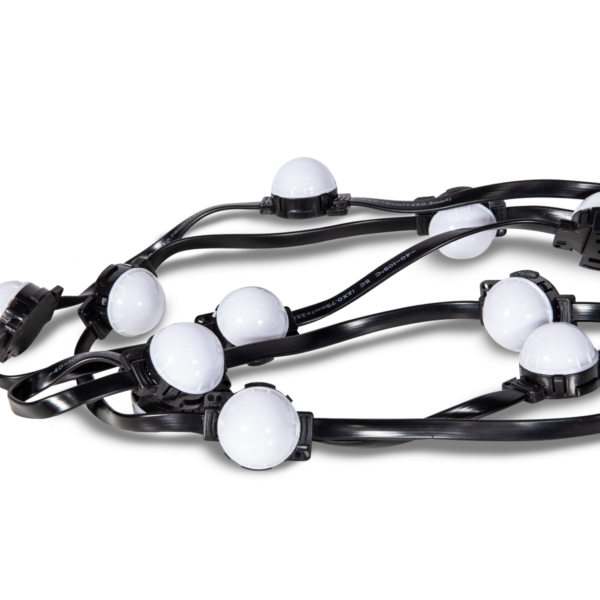

Outdoor RGB LED Pixel Dots String with Dome Diffuser

PixiDot String-OD is an outdoor IP67 rated light weight string of bright pixels created in customizable versions with predefined quantities and center to center distance. With 6 bright SMD RGB 3535 LEDs and clear cover, these string of pixels are ideal for pixel mapping effects on bridges, buildings’ facades, stadiums, retail shops, and outdoor applications.

SKU: PDSOD24RGB50 Categories: ,

SOURCE

  • Light source: 6 SMD RGB 3535 LEDs

OPTICAL SYSTEM

  • Cover: Dome opal diffuser
  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 1 pixel per dot
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 3 CHs per dot
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 1.2 watts per dot

CONNECTIONS

  • Power and data connection: 5 pin female and male connection
  • Cable entry: Side

PHYSICAL

  • Dimensions: 50 x 44 x 20mm
  • Color: Black
  • IP rating: 67
  • Operating temperature: -40℃/50℃
