Name: PIXIBAR - Outdoor
SKU: 4655

PIXIBAR – Outdoor

Outdoor RGB Digital LED Bar Series

The PixiBar Outdoor offers a wide range of versatile, outdoor-rated LED pixel bars designed for creative lighting installations and visual effects in various environments. Featuring slim profiles and durable IP67 construction, these bars are available in multiple diffuser options, including dome, clear, and square opal, allowing for different lighting effects and diffusion styles.

The PixiBar Slim 60 models, with 60 RGB LEDs and 20 pixels control, come in both dome (OD), clear (OC), and square (OS) diffusers, ideal for large-scale applications like building exteriors, bridges, shopping centers, and visual art projects. For more compact setups, the PixiBar 48 (48 RGB LEDs, 16 pixels control) and PixiBar 12-OS (12 RGB LEDs, 4 pixels control) offer flexibility for stage, club, and outdoor events, with opal or square diffusers for varied lighting effects.

Additionally, the PixiBar 24-OS (24 RGB LEDs, 8 pixels control) provides a half-meter option for installations requiring a balance of brightness and coverage. Each model delivers impressive color mixing and a wide selection of pixel effects, making them perfect for both large installations and more detailed, intricate designs.

SOURCE

All models use SMD3535 RGB LEDs.

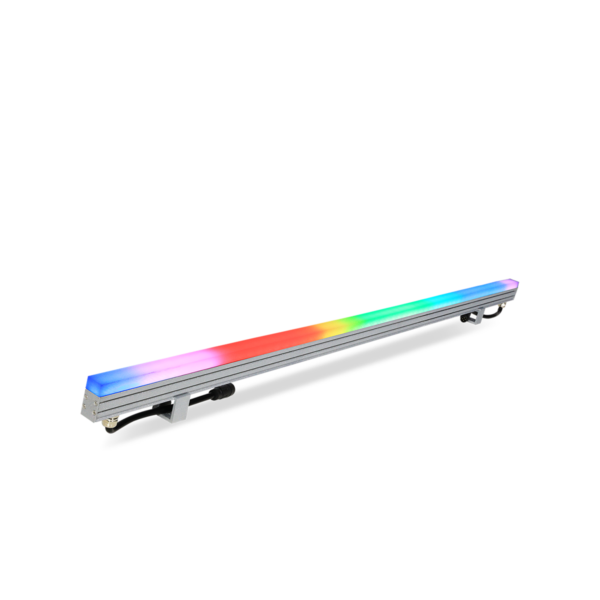

The PixiBar Slim 60-OS, Slim 60-OD, and Slim 60-OC models have 60 LEDs.

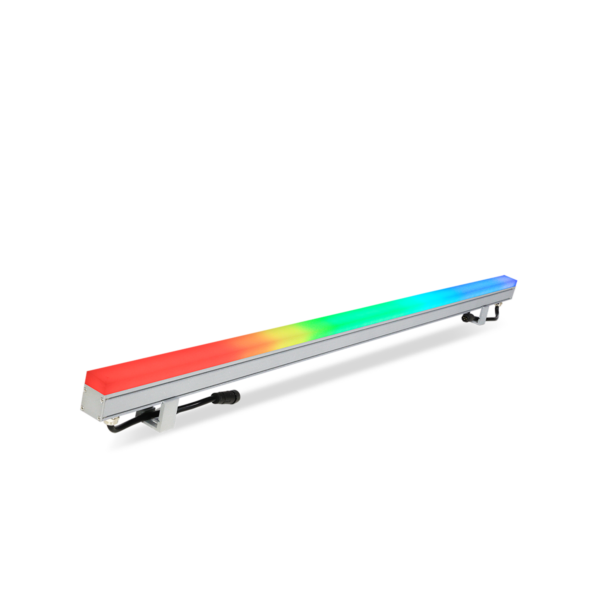

The PixiBar 48-OD and 48-OC models have 48 LEDs.
The PixiBar 12-OS has 12 LEDs.
The PixiBar 24-OS has 24 LEDs

OPTICAL SYSTEM

PixiBar Slim 60-OS and PixiBar Slim 60-OC have a Square diffuser.
PixiBar Slim 60-OD and PixiBar 48-OD feature a Dome diffuser.
PixiBar 48-OC uses a Clear diffuser.
PixiBar 12-OS, PixiBar 24-OS and PixiBar Slim 60-OS are equipped with a Square opal diffuser.
All models have a 120° view angle.

CONTROL & PROGRAMMING

Pixels Control:
- 20 pixels for PixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC, Slim 60-OS.
- 16 pixels for PixiBar 48-OD and 48-OC.
- 4 pixels for PixiBar 12-OS.
- 8 pixels for PixiBar 24-OS.
Color Mixing: All models use RGB.
Control Protocols: DMX, 44 FPS.
Control Channels:
- 60 CHs for PixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC, Slim 60-OC.
- 48 CHs for PixiBar 48-OD and 48-OC.
- 12 CHs for PixiBar 12-OS.
- 24 CHs for PixiBar 24-OS.
Address Setting: All models set manually.

ELECTRICAL

All models operate with 24V input voltage.
Power consumption:
- 10 watts for PixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC, PixiBar 48-OD, and PixiBar 48-OC.
- 3 watts for PixiBar 12-OS.
- 5 watts for PixiBar 24-OS.

CONNECTIONS

Power and Data Connection:
- 15cm 5-pin female and male for PixiBar Slim 60-OD, 48-OD, 48-OC, Slim 60-OC, 12-OS and PixiBar 24-OS
Cable Entry: All models have Bottom cable entry.

PHYSICAL

Dimensions:

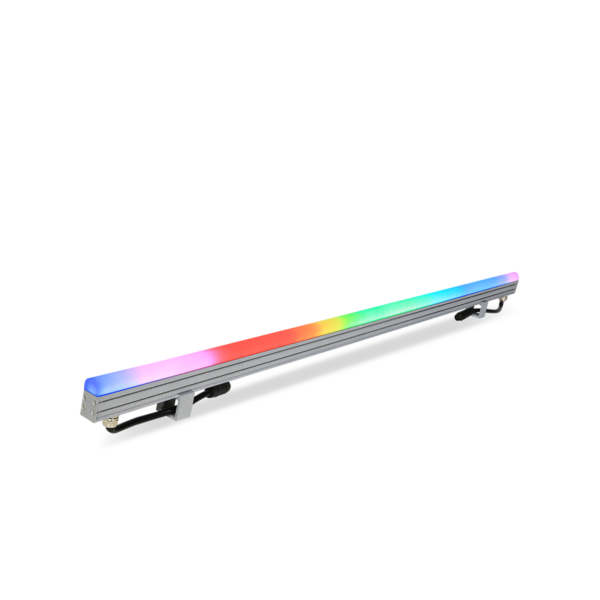

- PixiBar Slim 60-OD: 1000 x 18 x 38mm (without bracket), 1000 x 28 x 78mm (with bracket).

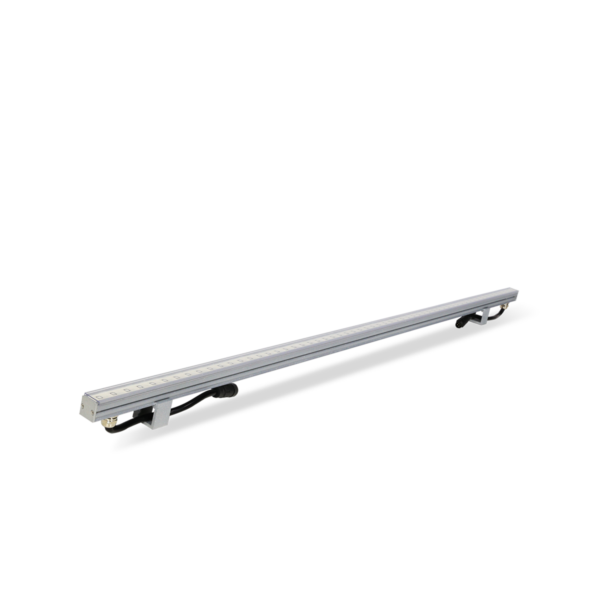

- PixiBar Slim 60-OC: 1000 x 18 x 21mm (without bracket), 1000 x 28 x 49mm (with bracket).
- PixiBar Slim 60-OS: 1000 x 18 x 38mm (without bracket), 1000 x 28 x 78mm (with bracket).

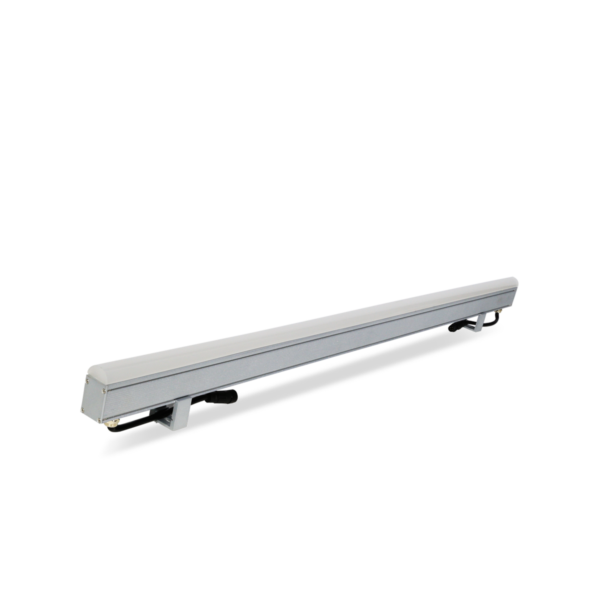

- PixiBar 48-OD: 1000 x 28 x 50mm (without bracket), 1000 x 35 x 90mm (with bracket).

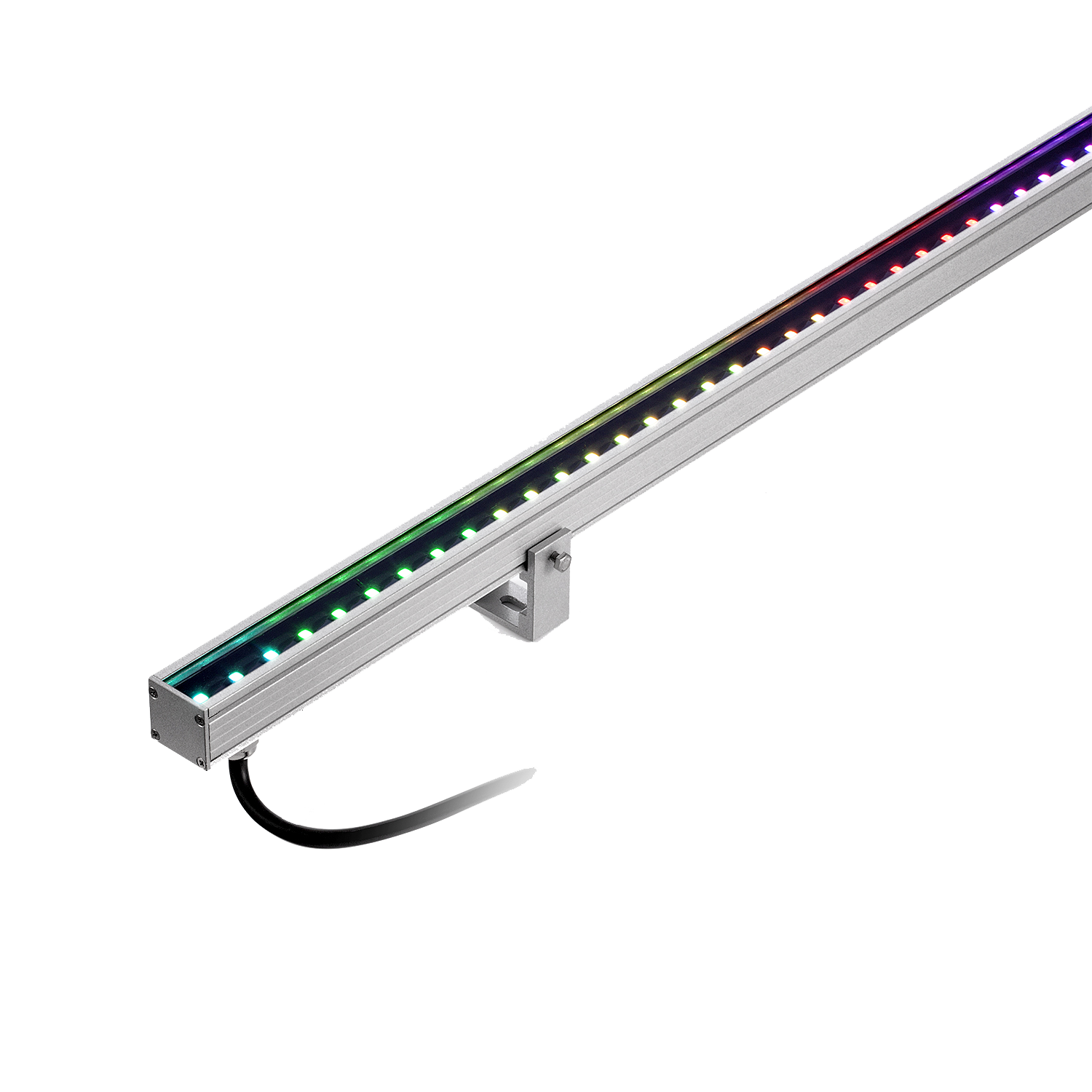

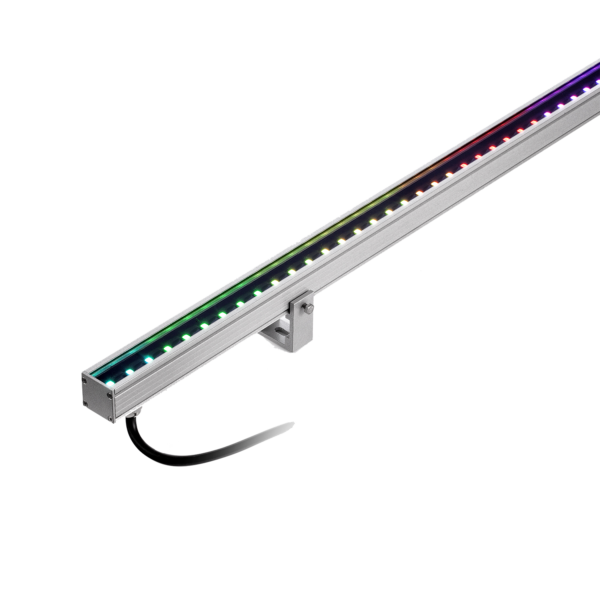

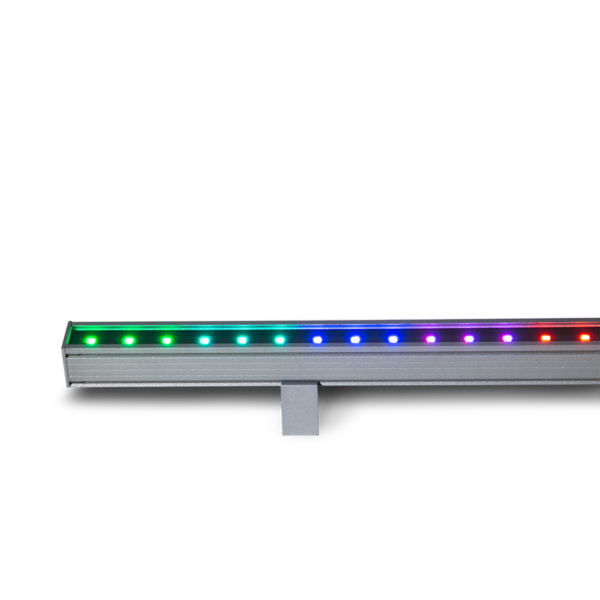

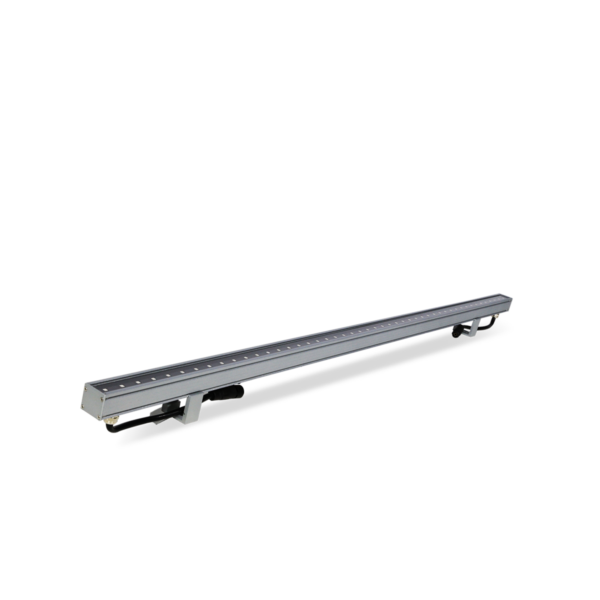

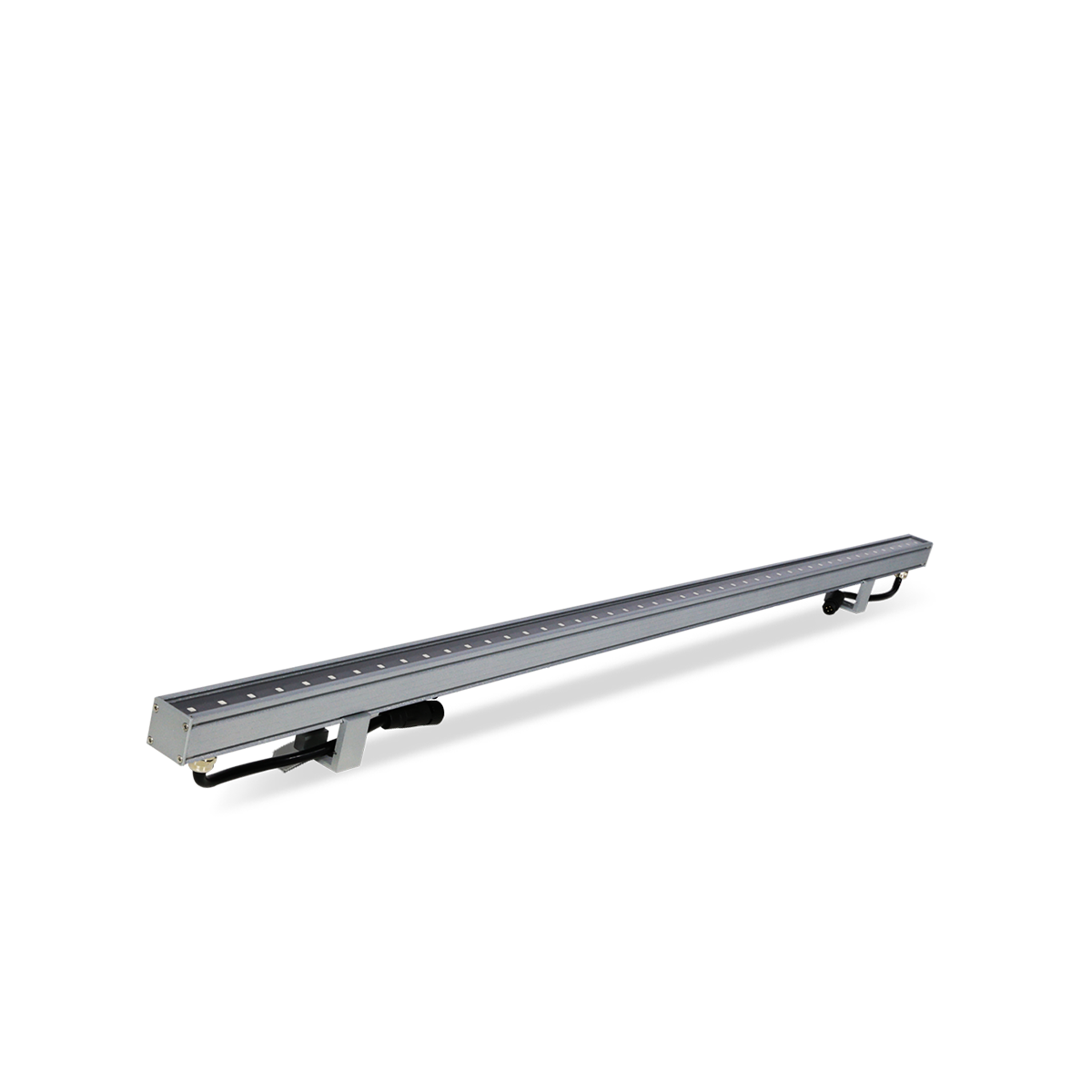

- PixiBar 48-OC: 1000 x 28 x 26mm (without bracket), 1000 x 35 x 66mm (with bracket).
- PixiBar 12-OS: 250 x 28 x 50mm (without bracket), 250 x 35 x 90mm (with bracket).
- PixiBar 24-OS: 500 x 28 x 50mm (without bracket), 500 x 35 x 90mm (with bracket)
Color: All models are Silver.
IP Rating: All models are IP67.
Operating Temperature: All models can operate within -40℃ to 50℃.
