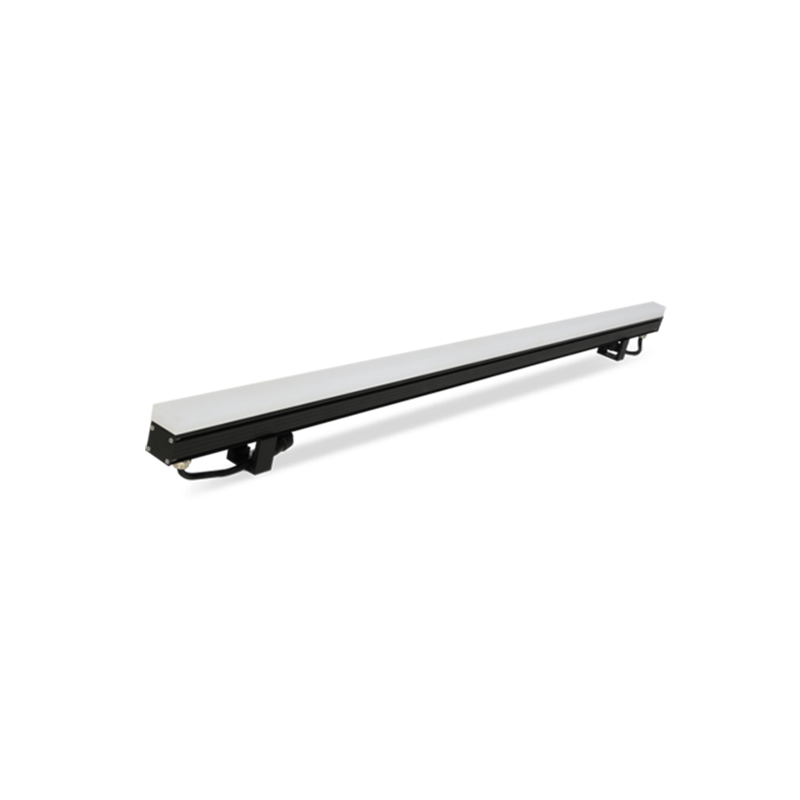

PIXIBAR 12 IS 0.25m
PIXIBAR 48 IS 1m

PIXIBAR

PIXIBAR

Outdoor RGB Digital LED Bar Series

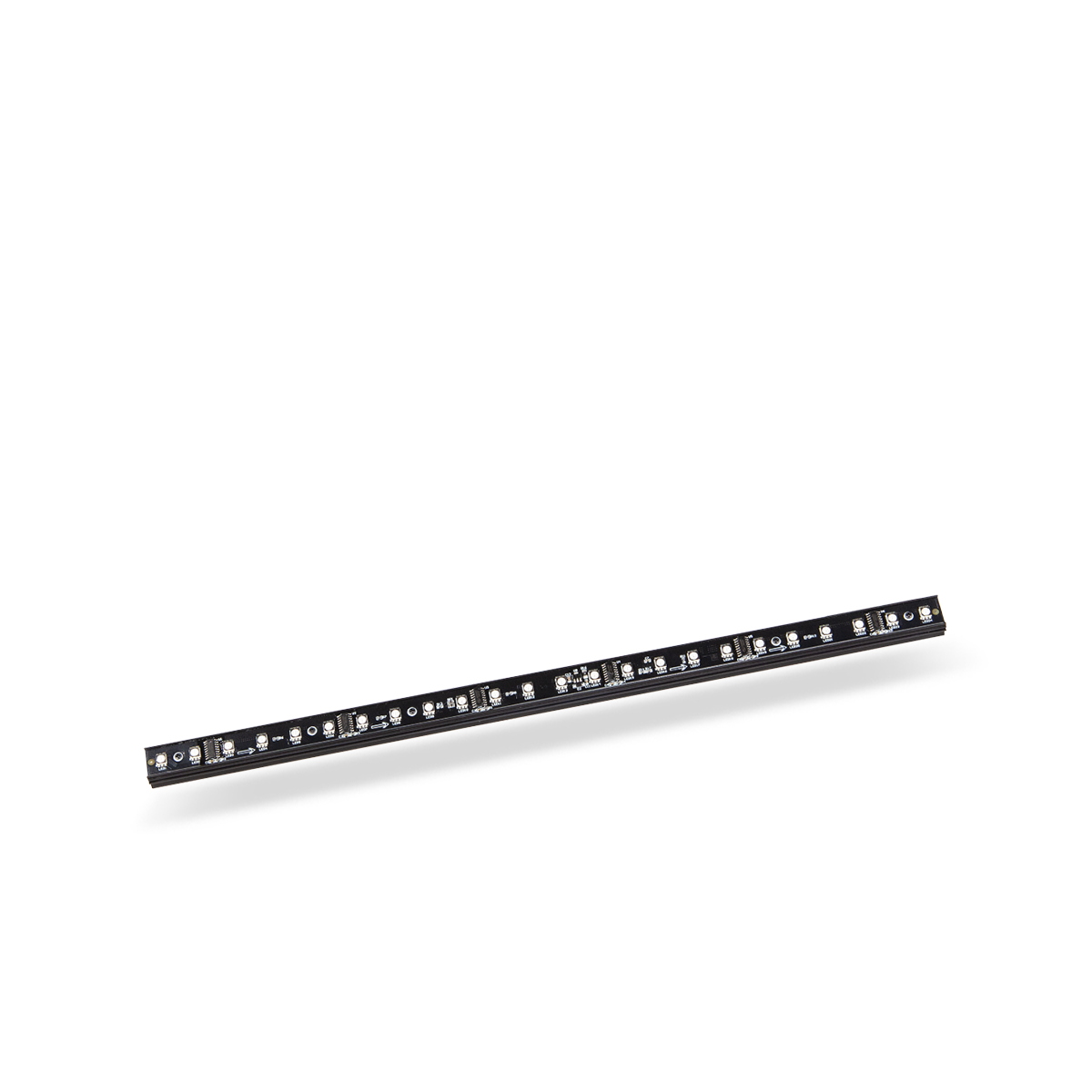

The PixiBar series offers a wide range of RGB LED pixel bars designed for dynamic lighting effects in various installations. From compact options like the PixiBar Mini 24-IC (24 LEDs) to larger bars such as the PixiBar 48-ID (1m, 48 LEDs), these pixel bars deliver vibrant color mixing and stunning pixel effects for both linear and grid setups on walls, ceilings, and more. The PixiBar 12-IS (0.25m, 12 LEDs) and PixiBar 24-IS (0.5m, 24 LEDs) are perfect for smaller spaces or subtle accents, while the PixiBar 36-IS (0.75m, 36 LEDs) offers a mid-sized solution for enhanced coverage. For more advanced, multi-dimensional installations. Whether you’re working with a small or large setup, the PixiBar series provides flexibility, powerful control, and exceptional color effects, perfect for clubs, stages, and indoor events.

Clear
SKU: N/A Categories: ,

SOURCE:

  • Light Source: SMD5050 RGB LEDs
  • LED Quantity:
    • PIXIBAR 12-IS: 12 LEDs

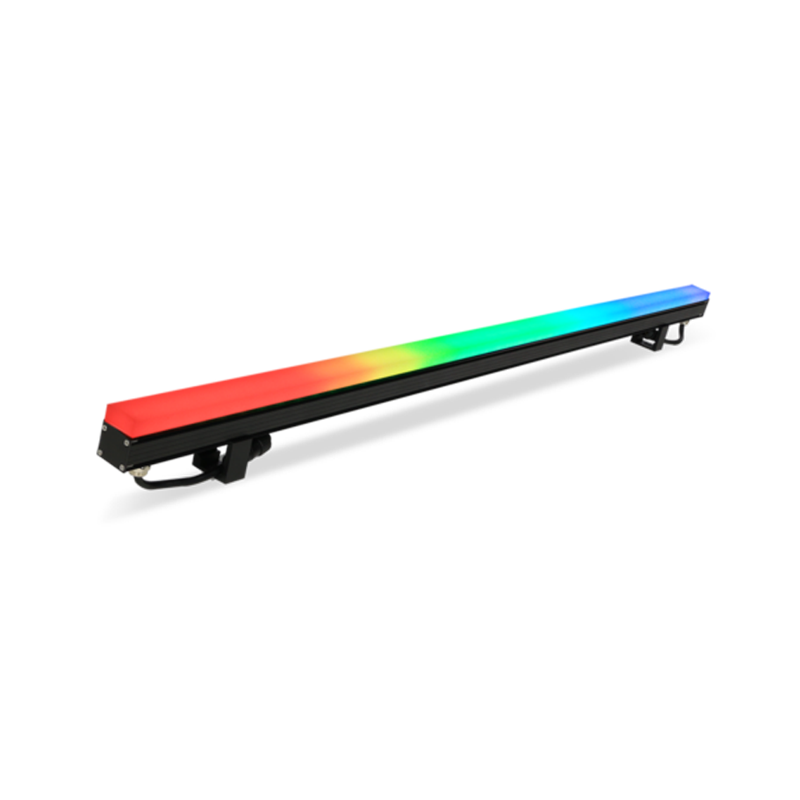

    • PIXIBAR 24-IS: 24 LEDs

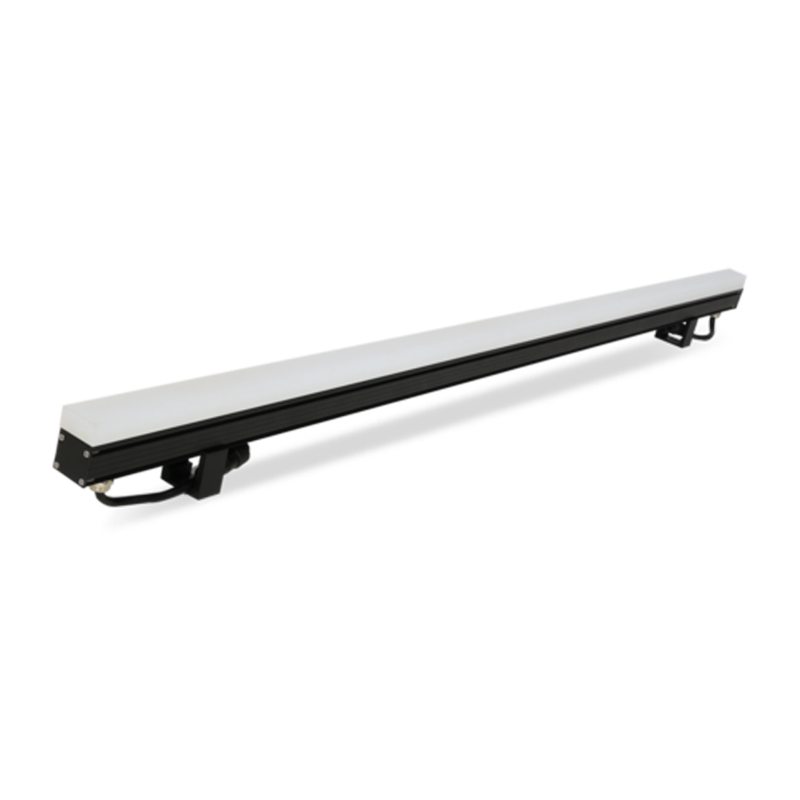

    • PIXIBAR 36-IS: 36 LEDs

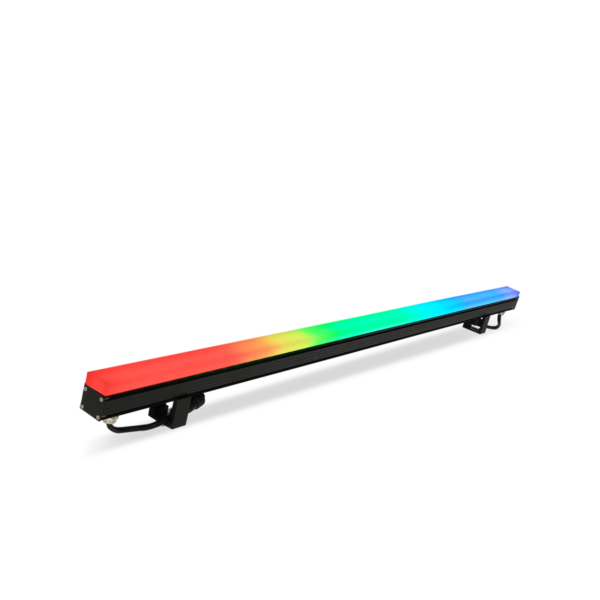

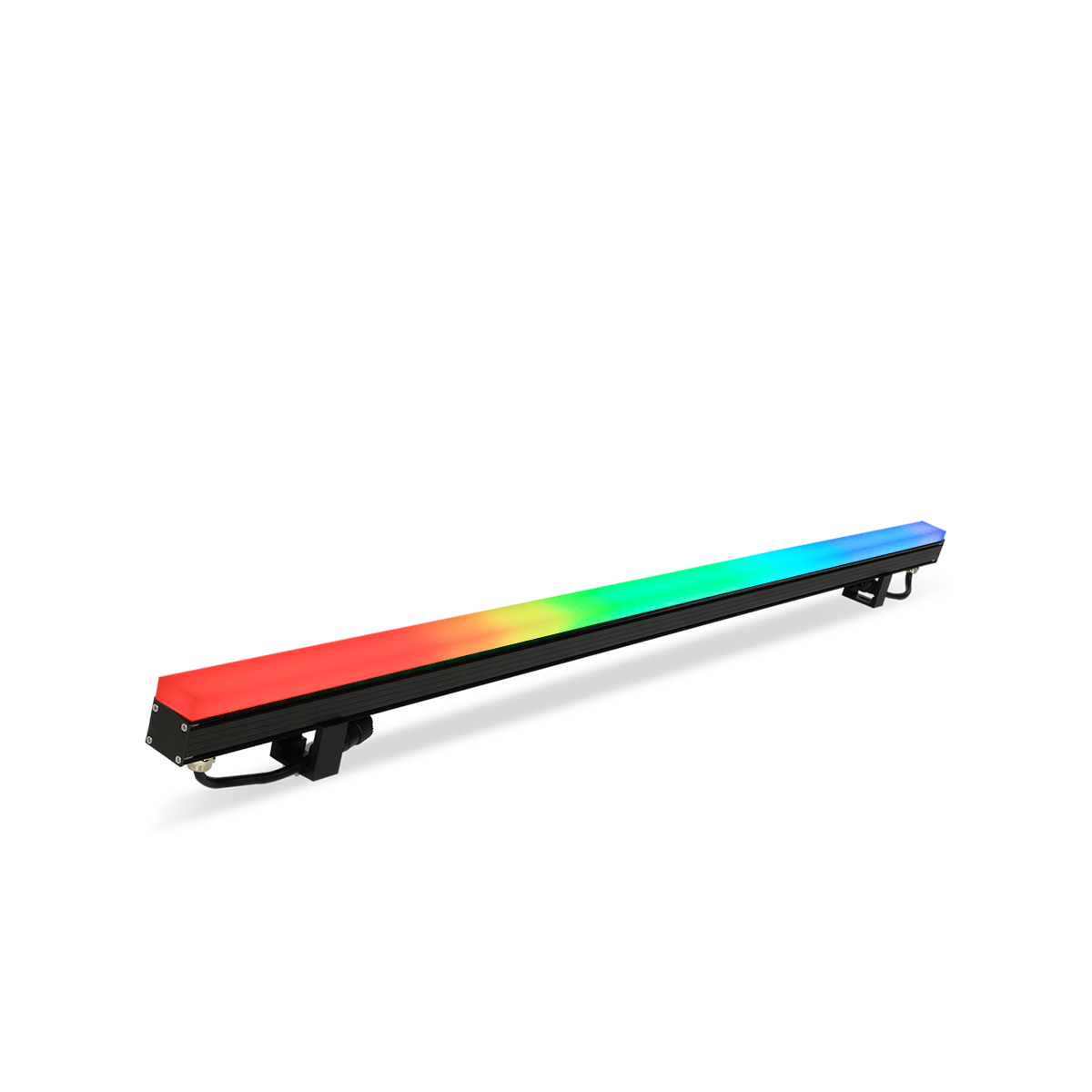

    • PIXIBAR 48-IS: 48 LEDs

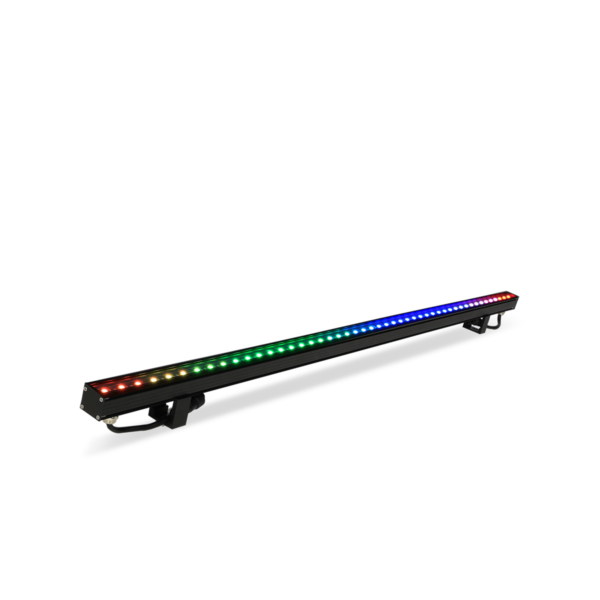

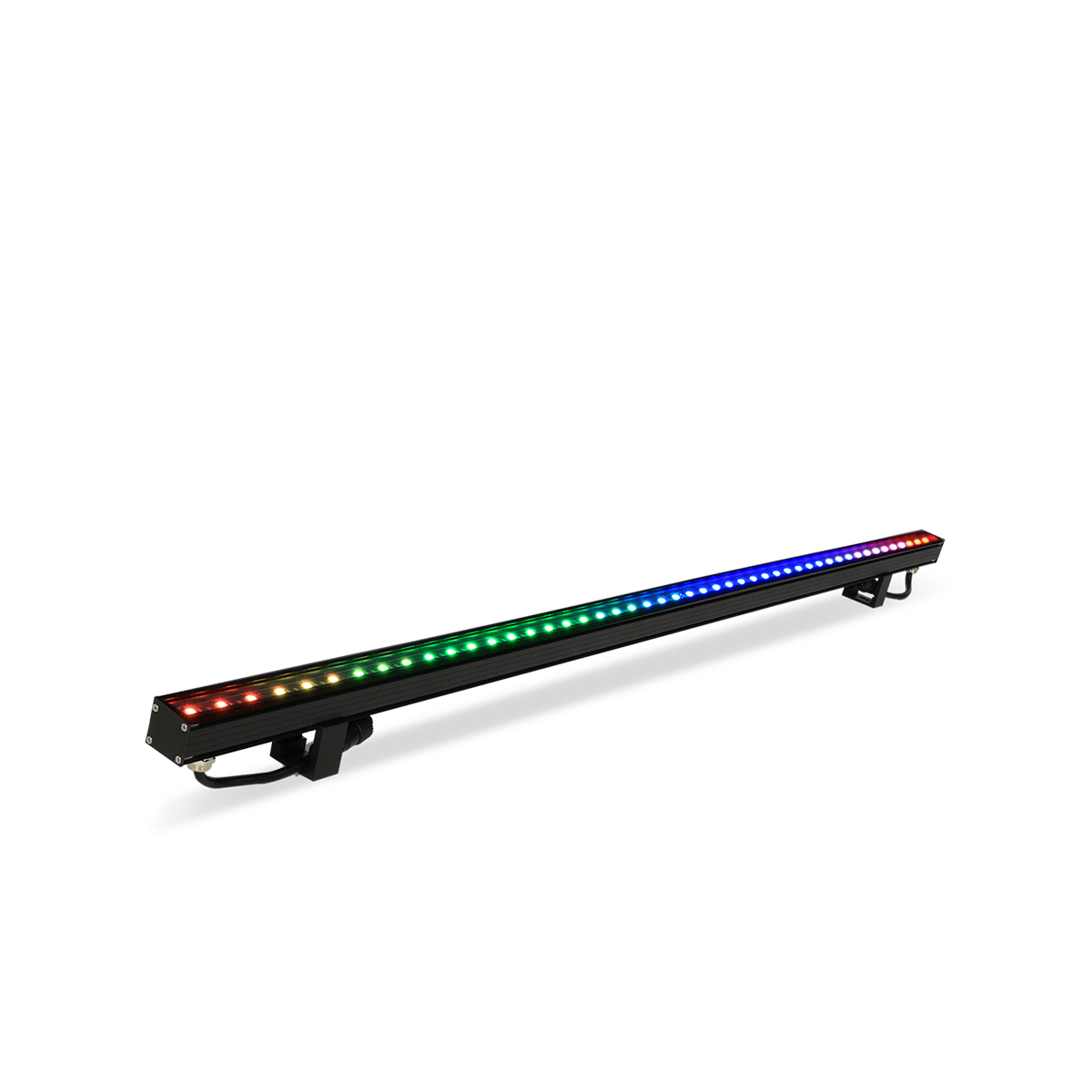

    • PIXIBAR 48-IC: 48 LEDs

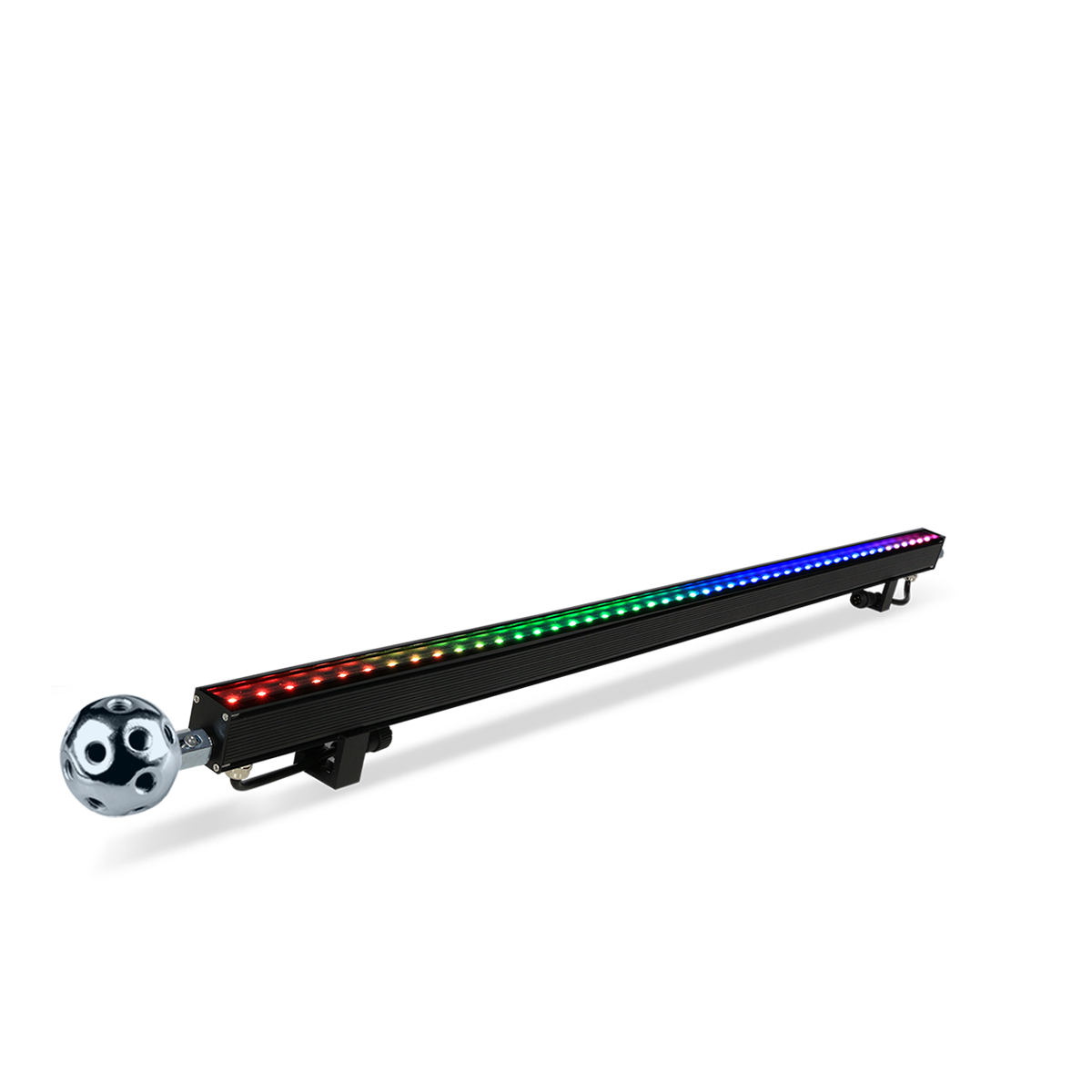

    • PIXIBAR 48-ID: 48 LEDs

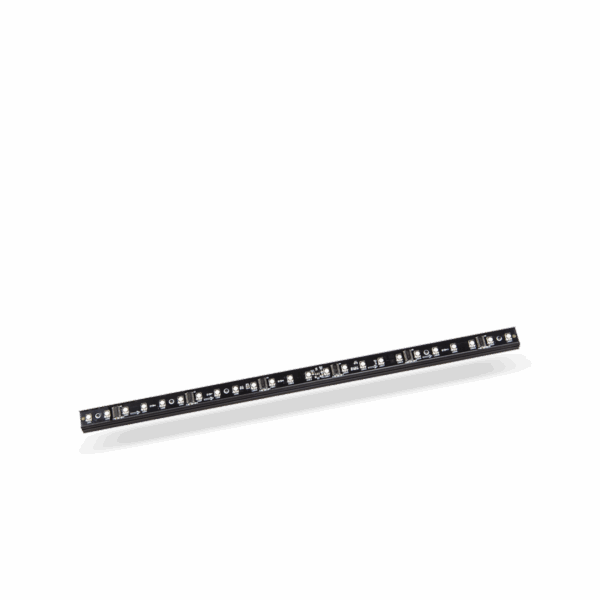

    • PIXIBAR MINI 24-IC: 24 LEDs

OPTICAL SYSTEM:

  • Cover:
    • PIXIBAR 12-IS, PIXIBAR 24-IS, PIXIBAR 36-IS: Square opal diffuser
    • PIXIBAR 48-IS: Square opal diffuser
    • PIXIBAR 48-ID: Dome opal diffuser
    • PIXIBAR 48-IC, PIXIBAR MINI 24-IC: Clear diffuser
  • View Angle: 120°

CONROL & PROGRAMMING:

  • Pixels Control:
    • PIXIBAR 12-IS: 4 pixels
    • PIXIBAR 24-IS: 8 pixels
    • PIXIBAR 36-IS: 12 pixels
    • PIXIBAR 48-IS: 16 pixels
    • PIXIBAR 48-IC: 16 pixels
    • PIXIBAR 48-ID: 16 pixels
    • PIXIBAR MINI 24-IC: 24 pixels
  • Color Mixing: RGB
  • Control Protocols: DMX, 44 FPS
  • Control Channels:
    • PIXIBAR 12-IS: 12 CHs
    • PIXIBAR 24-IS: 24 CHs
    • PIXIBAR 36-IS: 36 CHs
    • PIXIBAR 48-IS: 48 CHs
    • PIXIBAR 48-IC: 48 CHs
    • PIXIBAR 48-ID: 48 CHs
    • PIXIBAR MINI 24-IC: 72 CHs
  • Address Setting: Manual

ELECTRICAL:

  • Input Voltage: 24V
  • Power Consumption:
    • PIXIBAR 12-IS: 3 watts
    • PIXIBAR 24-IS: 5 watts
    • PIXIBAR 36-IS: 8 watts
    • PIXIBAR 48-IS: 10 watts
    • PIXIBAR 48-IC: 10 watts
    • PIXIBAR 48-ID: 10 watts
    • PIXIBAR MINI 24-IC: 6 watts

CONNECTIONS:

  • Power and Data Connection: 15cm 5-pin male and female connection
  • Cable Entry: Bottom
  • Power and Data Cable: 4-core (1-24V DC)
  • DMX Connections: 3-pin and 5-pin XLR In/Out (male and female)
  • Power Connections: PowerCon In and Out (for specific models)

PHYSICAL:

  • Dimensions:
    • PIXIBAR 12-IS: 250 x 28 x 50mm (without bracket), 250 x 35 x 90mm (with bracket)
    • PIXIBAR 24-IS: 500 x 28 x 50mm (without bracket), 500 x 35 x 90mm (with bracket)
    • PIXIBAR 36-IS: 750 x 28 x 50mm (without bracket), 750 x 35 x 90mm (with bracket)
    • PIXIBAR 48-IS: 1000 x 28 x 50mm (without bracket), 1000 x 35 x 90mm (with bracket)
    • PIXIBAR 48-IC: 1000 x 28 x 22mm (without bracket) 1000 x 35 x 62mm (with bracket)
    • PIXIBAR 48-ID: 1000 x 28 x 50mm (without bracket), 1000 x 35 x 90mm (with bracket)
    • PIXIBAR MINI 24-IC: 400 x 20 x 16mm (without bracket), 400 x 25 x 18mm (with bracket)
  • Color:
    • PIXIBAR 12-IS, PIXIBAR 24-IS, PIXIBAR 36-IS: Black
    • PIXIBAR 48-IS, PIXIBAR 48-ID, PIXIBAR 48-IC, PIXIBAR MINI 24-IC: Silver
  • IP Rating: IP20 (All models)
  • Operating Temperature:
    • PIXIBAR 12-IS, PIXIBAR 24-IS, PIXIBAR 36-IS, PIXIBAR 48-IS, PIXIBAR 48-ID, PIXIBAR 48-IC: -40°C to 50°C
    • PIXIBAR MINI 24-IC: -20°C to 50°C
  • Weight:
    • PIXIBAR 12-IS: 0.6 kg
    • PIXIBAR 24-IS: 0.8 kg
    • PIXIBAR 36-IS: 1.2 kg
    • PIXIBAR 48-IS: 1.5 kg
    • PIXIBAR 48-ID: 1.5 kg
    • PIXIBAR 48-IC:
    • PIXIBAR MINI 24-IC: 0.5 kg
Variations

PIXIBAR 12-IS, PIXIBAR 24-IS, PIXIBAR 36-IS, PIXIBAR 48-ID, PIXIBAR MINI 24-IC, PIXIBAR 48-IS
