Name: PAR 150
SKU: 9719

PAR 150

150-watt LED powered par fixtures

Introducing PAR 150 – a versatile line of 150-watt LED PAR fixtures crafted to enhance your lighting setups for theatrical, photo studio, and film applications. Each fixture offers exceptional performance with a manual zoom range of 25° to 80°, perfect for a variety of environments.

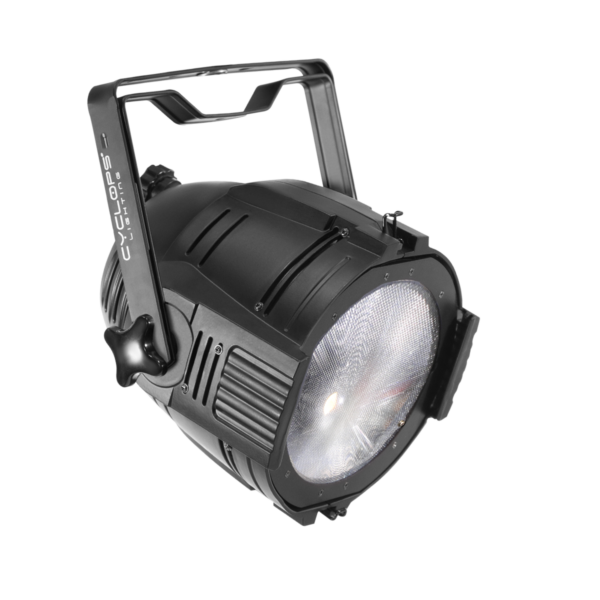

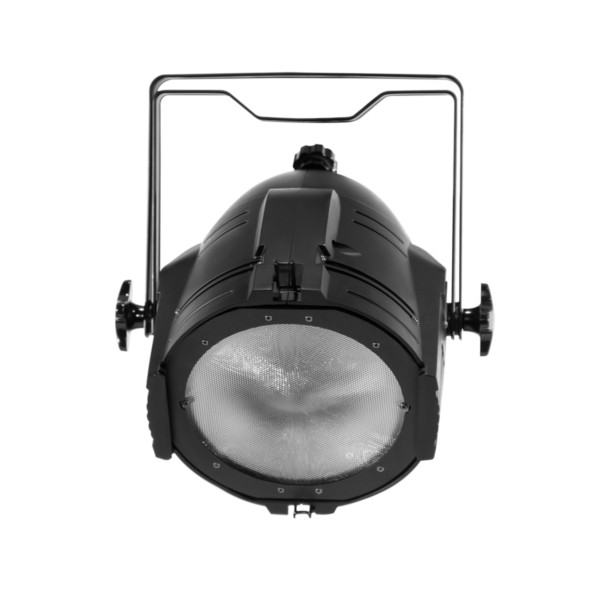

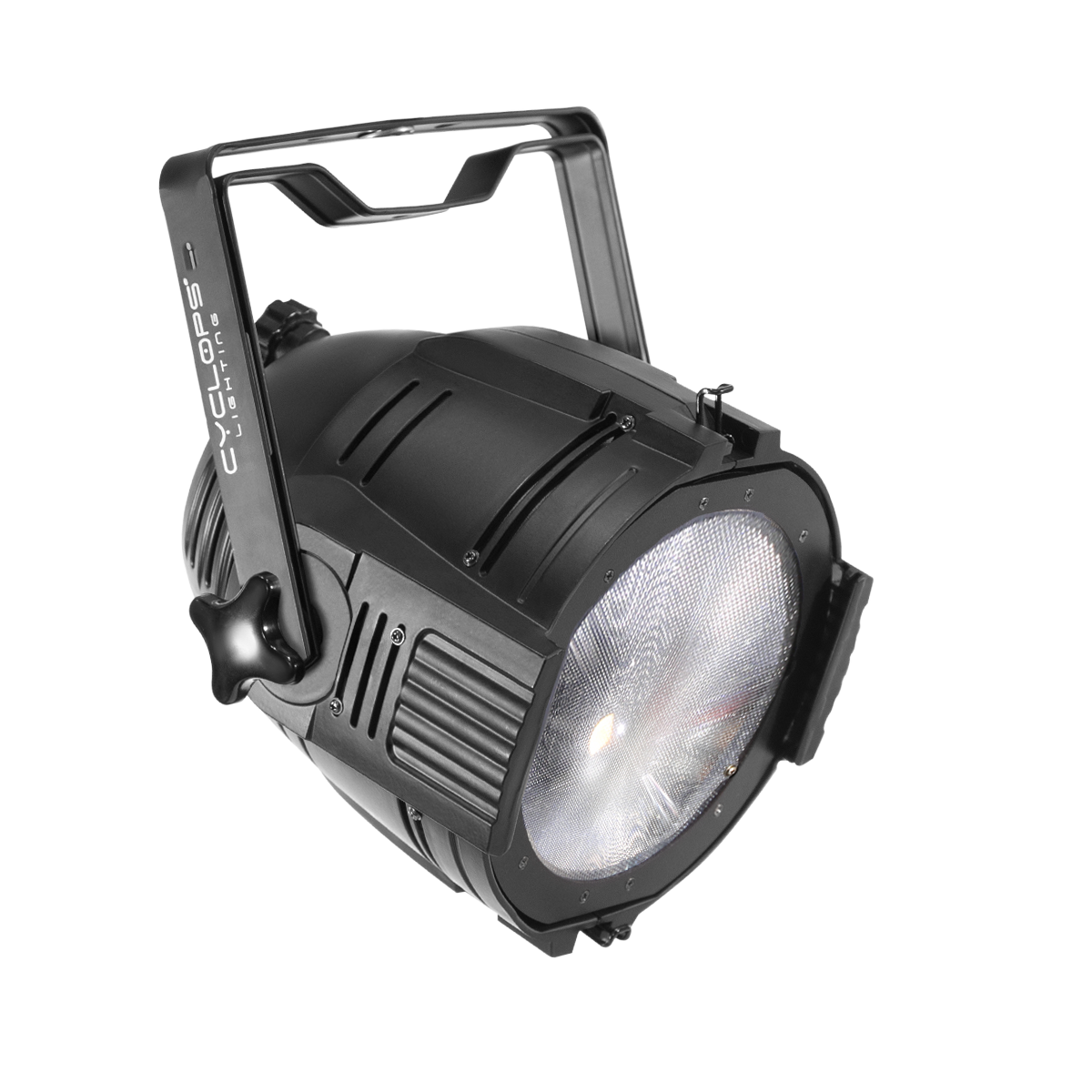

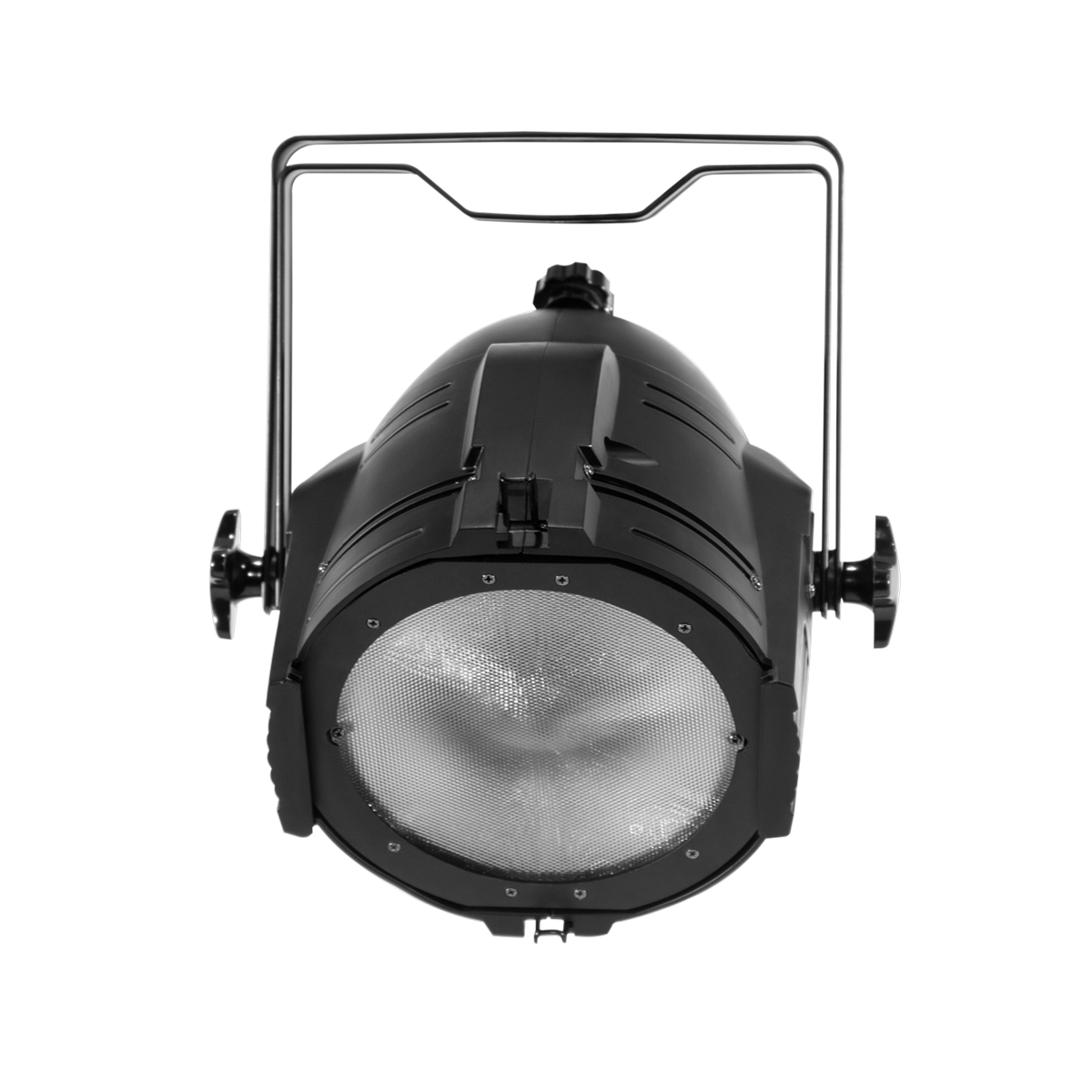

The PAR 150CZ features a cool white 5600K COB LED, providing a crisp, daylight-like output that replaces traditional 1000-watt halogen PAR 64 lamps. With a high CRI of 96, it ensures a flat, even light field for accurate color rendering.

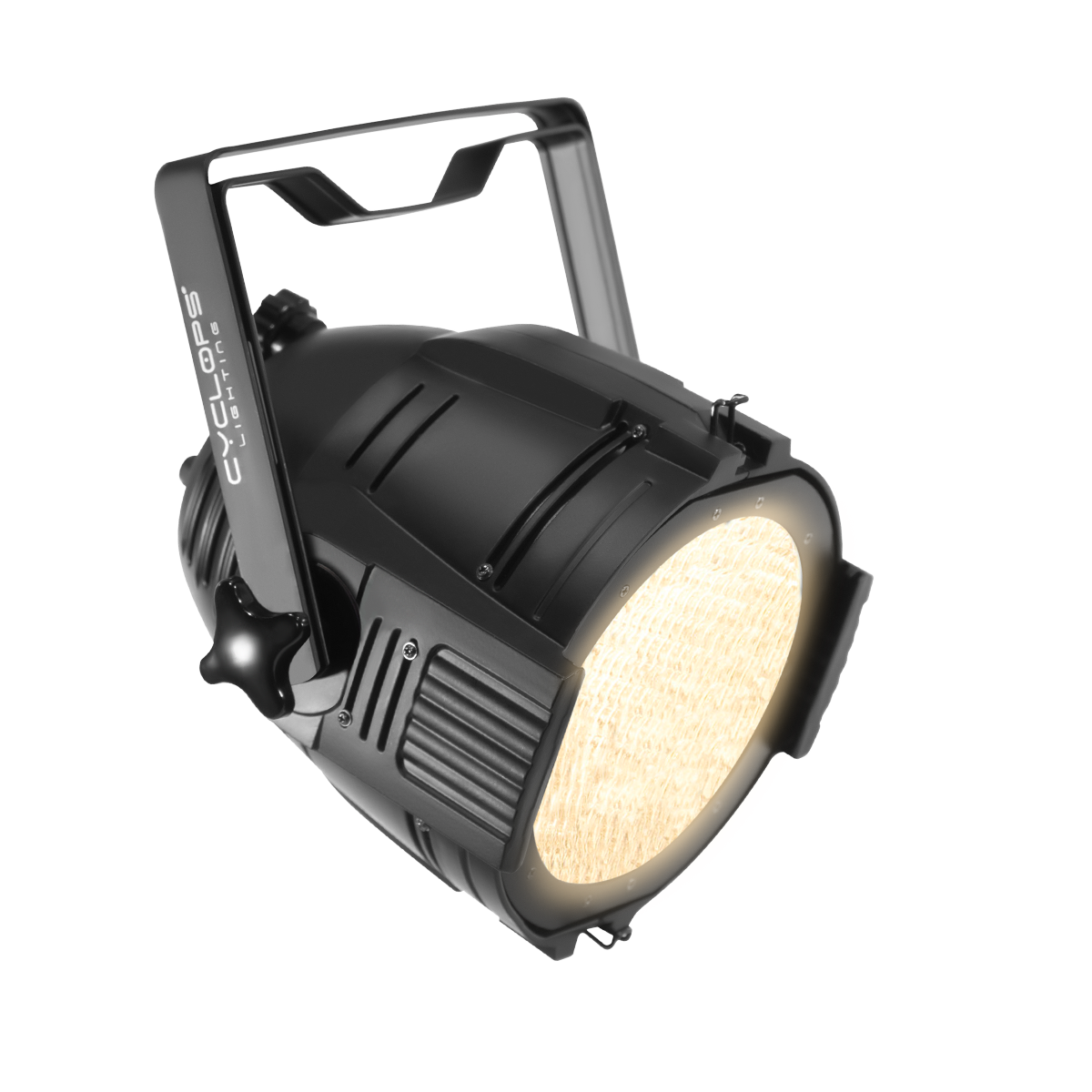

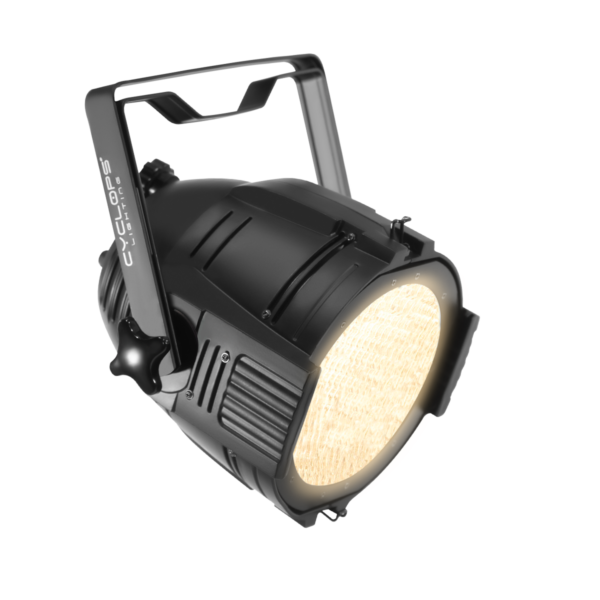

The PAR 150WZ offers a warm 3200K COB LED, delivering soft, warm white light while maintaining the same high CRI and zoom range. It’s ideal for creating cozy, intimate lighting in theatrical and film settings.

For vibrant color effects, the PAR 150RGBALZ uses RGBAL LEDs to produce a full spectrum of colors with smooth transitions, perfect for dynamic lighting designs.

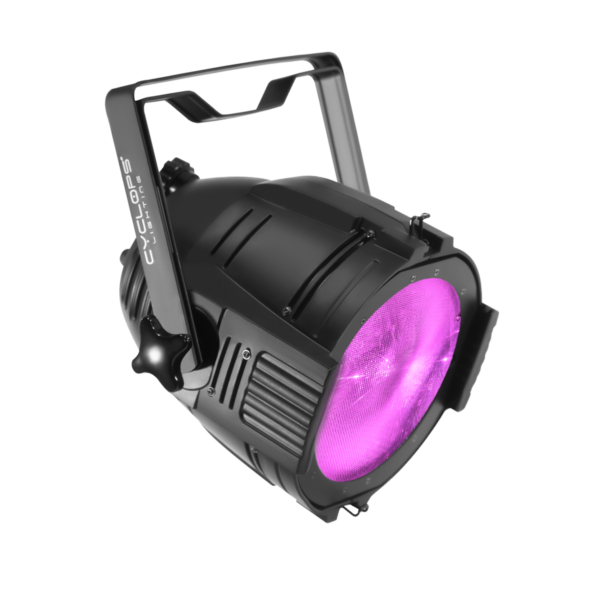

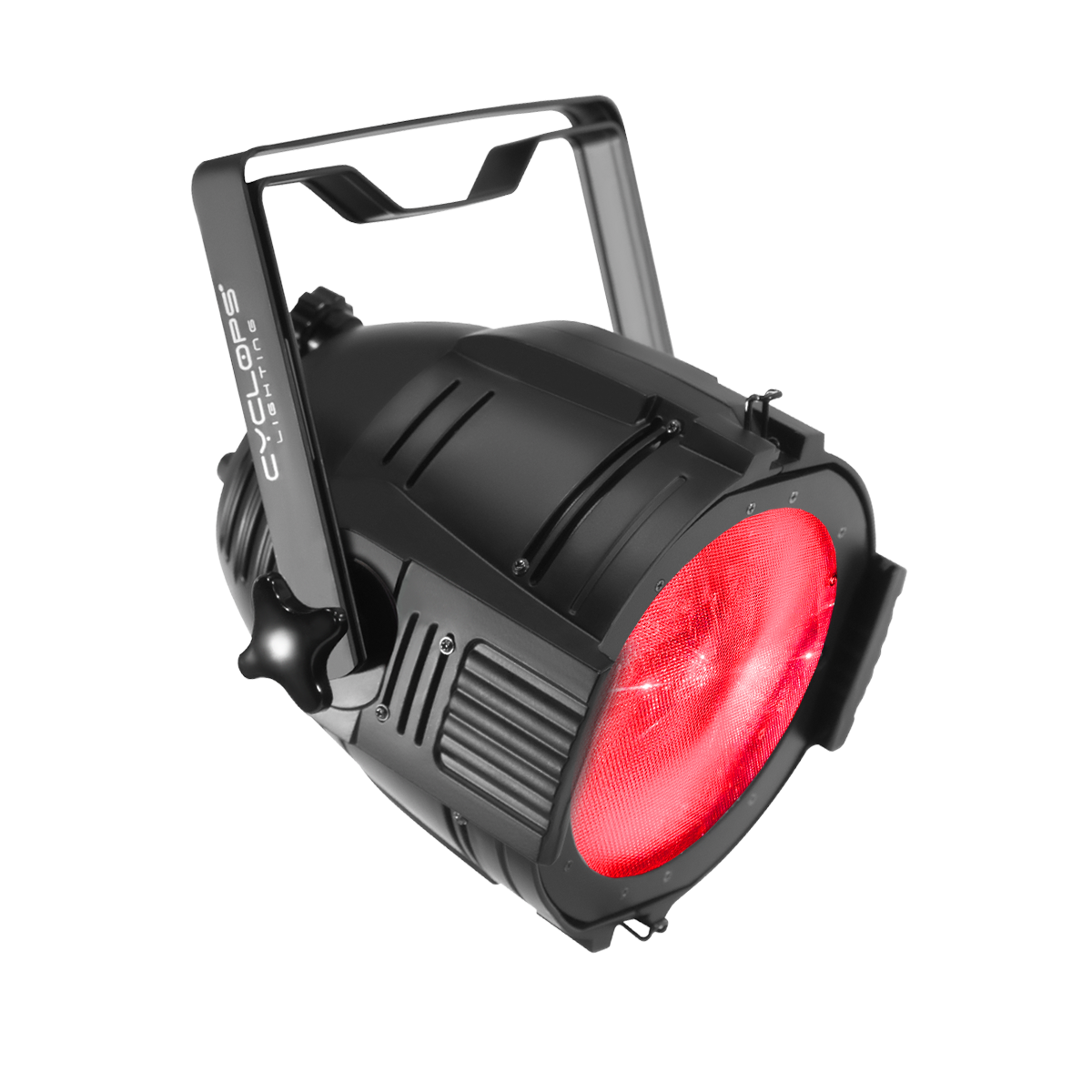

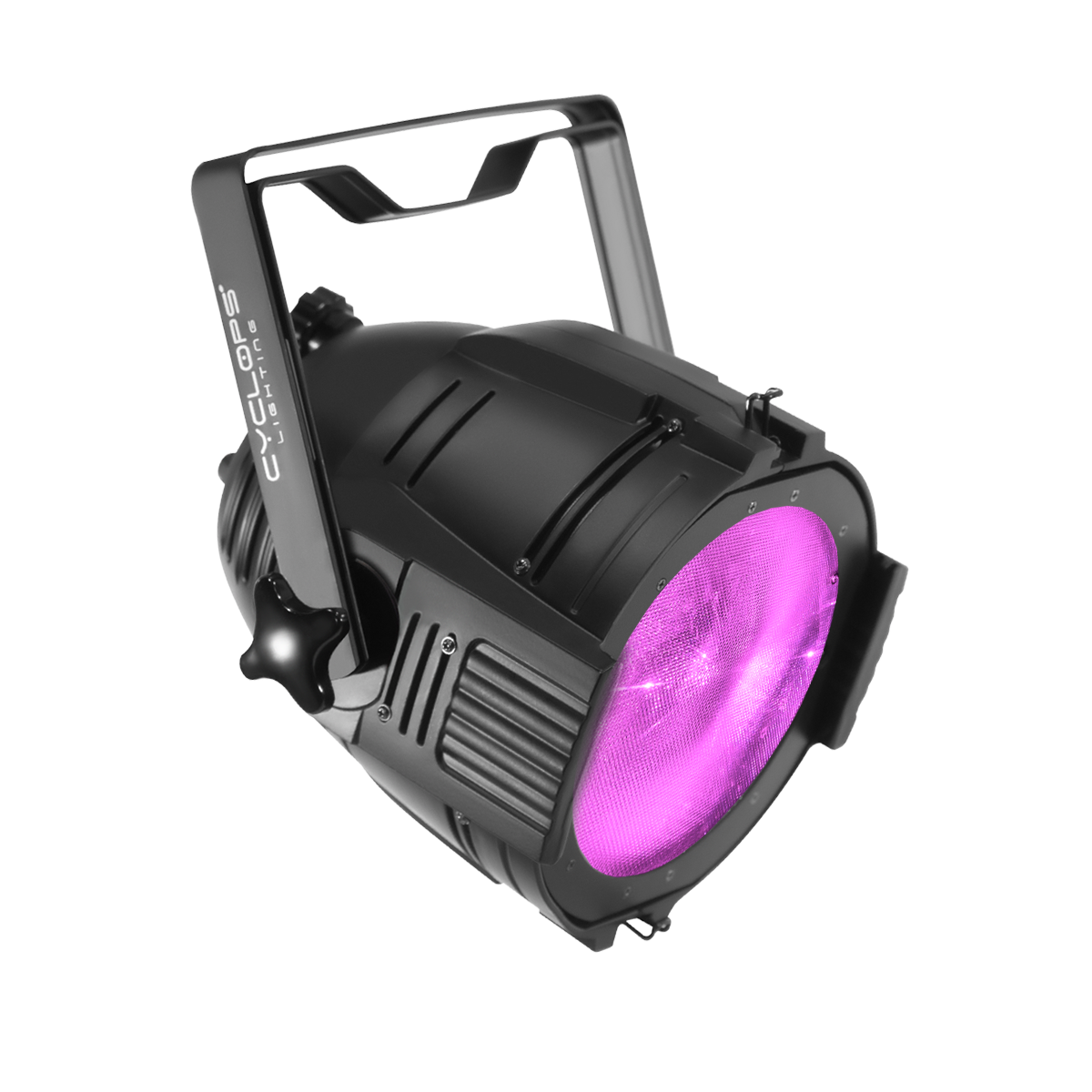

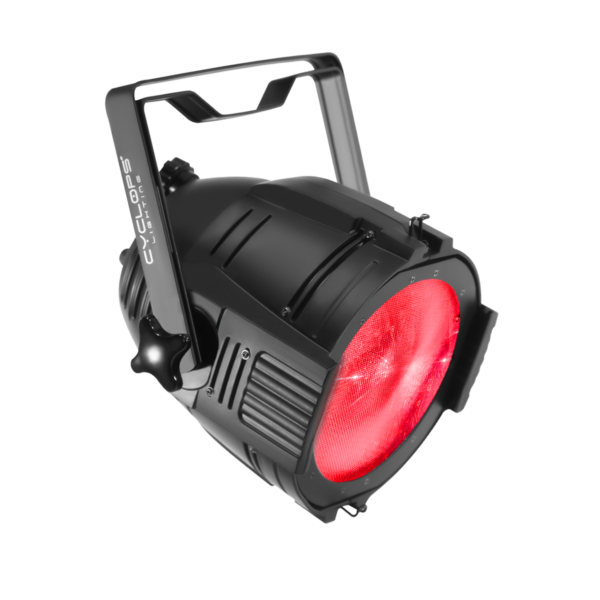

The PAR 150FZ combines RGBW LEDs for both rich colors and bright white light, offering a broad range of creative possibilities with smooth color transitions.

Each model in the PAR 150 Series is designed for efficiency and versatility, delivering powerful, compact lighting solutions that ensure consistent, professional results with high CRI and an even light field.

SOURCE
Light source: 150 watts (Cool White COB LED for PAR 150CZ, Warm White COB LED for PAR 150WZ, RGBAL LED for PAR 150GBALZ, RGBW COB LED for PAR 150FZ)
Equal to HPL 750 Par
LED life expectancy: 50,000 Hrs.
CRI: 96; Ra≥94 (for PAR 150CZ, PAR 150WZ)
TLCI: 96 (for PAR 150CZ, PAR 150WZ)

OPTICAL SYSTEM
Manual zoom
Zoom range: 25° to 80°
Light output: 12,000 Lux @ 2m @ 25° (for PAR 150CZ, PAR 150WZ)
Color mixing: RGBAL (for PAR 150GBALZ)
Color mixing: RGBW (for PAR 150FZ)

KEY FEATURES
5 Dimmer curves
Strobe
Video flicker free with selectable PWM
Barn doors included
Built-in color macros (for PAR 150GBALZ, PAR 150FZ)

CONTROL & PROGRAMMING
Control protocols: DMX, RDM (for PAR 150CZ, PAR 150WZ, PAR 150GBALZ, PAR 150FZ)
Control channels:

1, 2, 3, 4 CHs (for PAR 150CZ, PAR 150WZ)
5/9/11 (for PAR 150GBALZ)
ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH) (for PAR 150FZ)

ELECTRICAL
Input voltage: AC100-240V/50-60Hz
Power consumption: 150 watts (for PAR 150CZ, PAR 150WZ, PAR 150GBALZ)
Power consumption: 240 watts (for PAR 150FZ)

CONNECTIONS
DMX connections: 3 pin XLR In/Out male and female
Power connections: IP screw type power connection

PHYSICAL
Dimensions: 290 x 260 x 350mm
Net weight: 4 Kg
Color: Black
Housing: Aluminum
IP rating: 20
Operating temperature: -5°C/45°C
