PR 20

PR 20

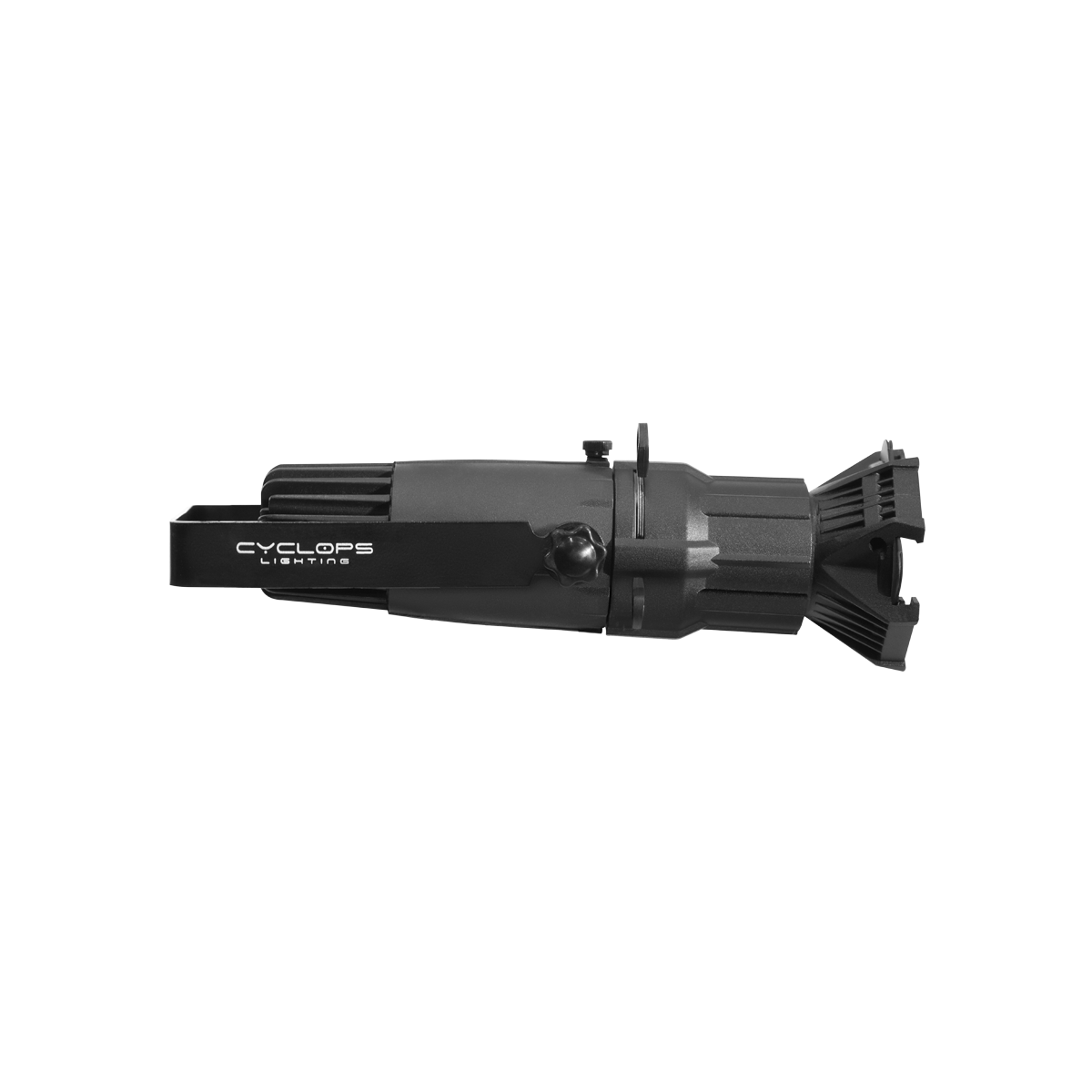

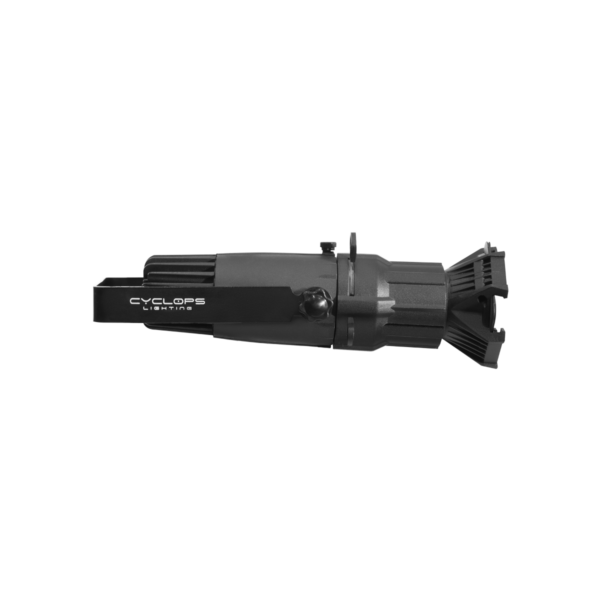

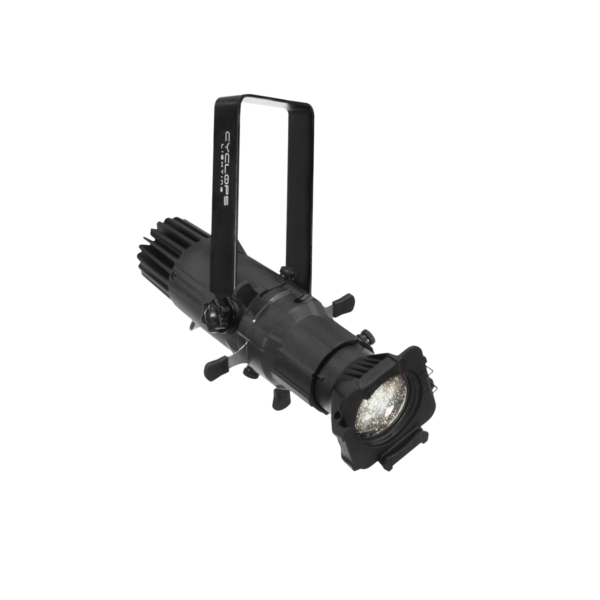

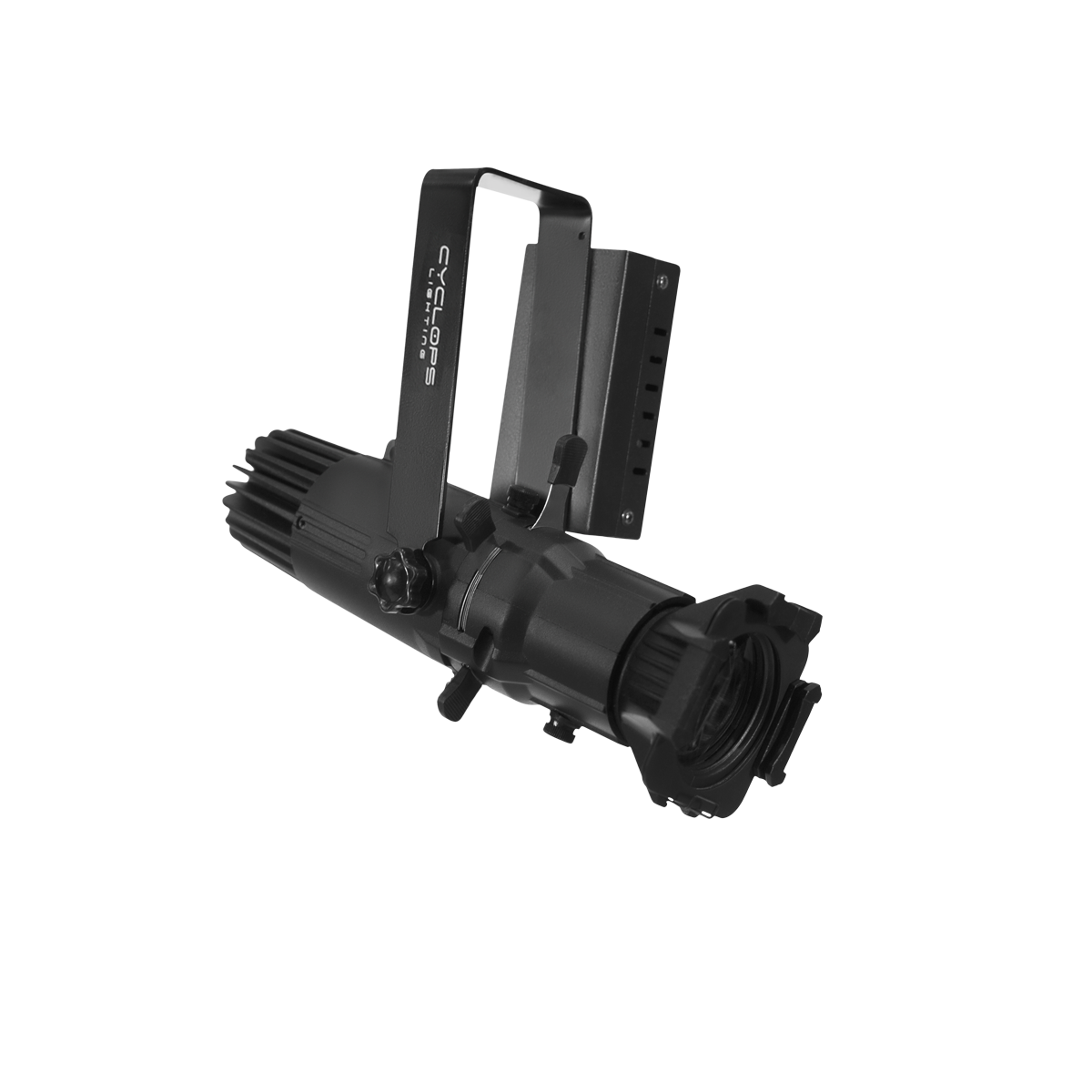

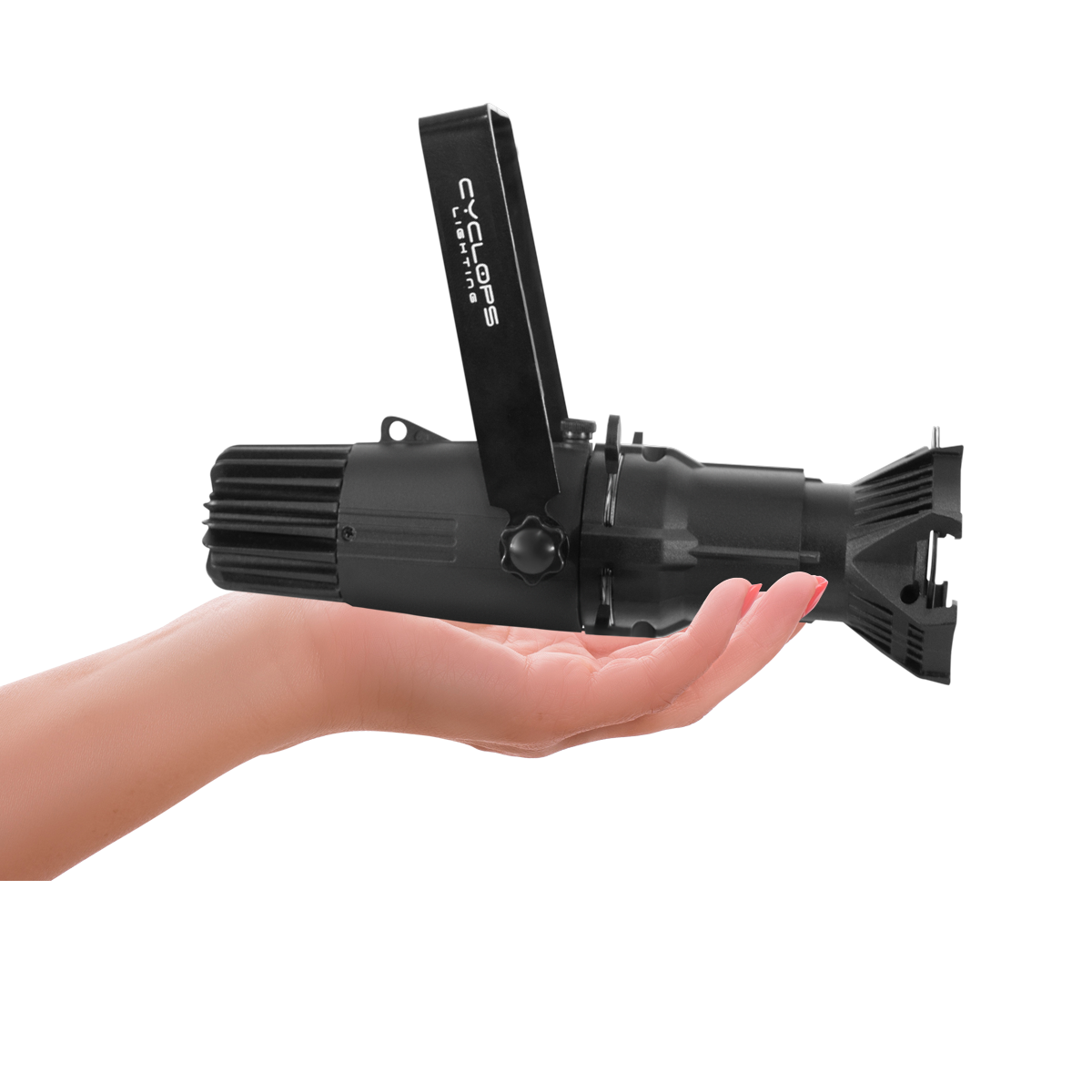

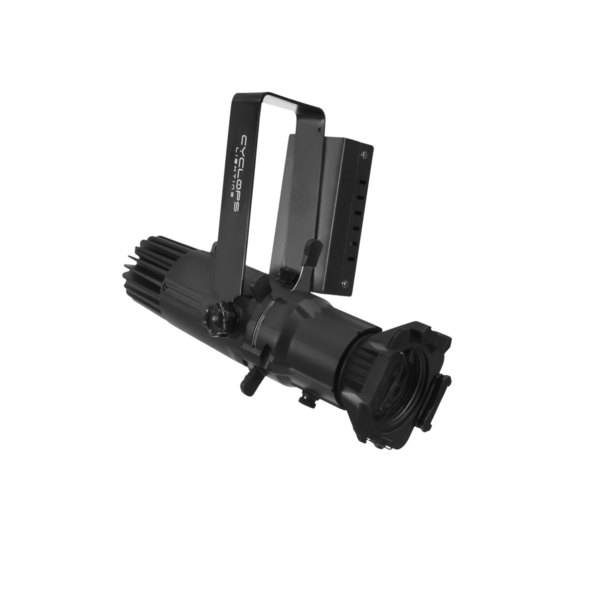

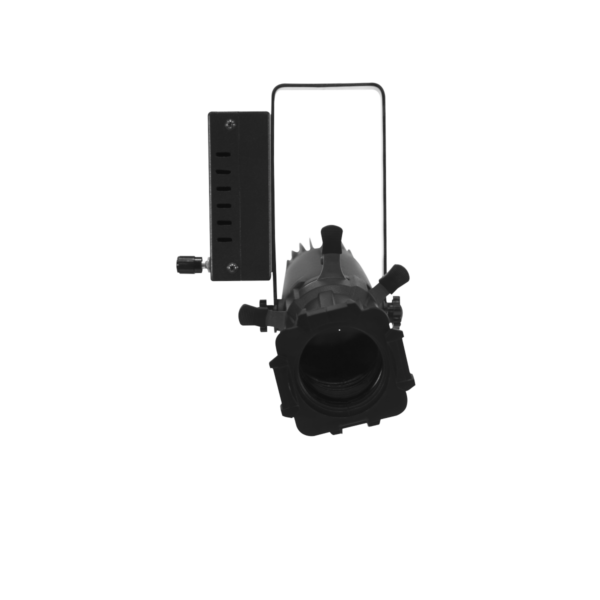

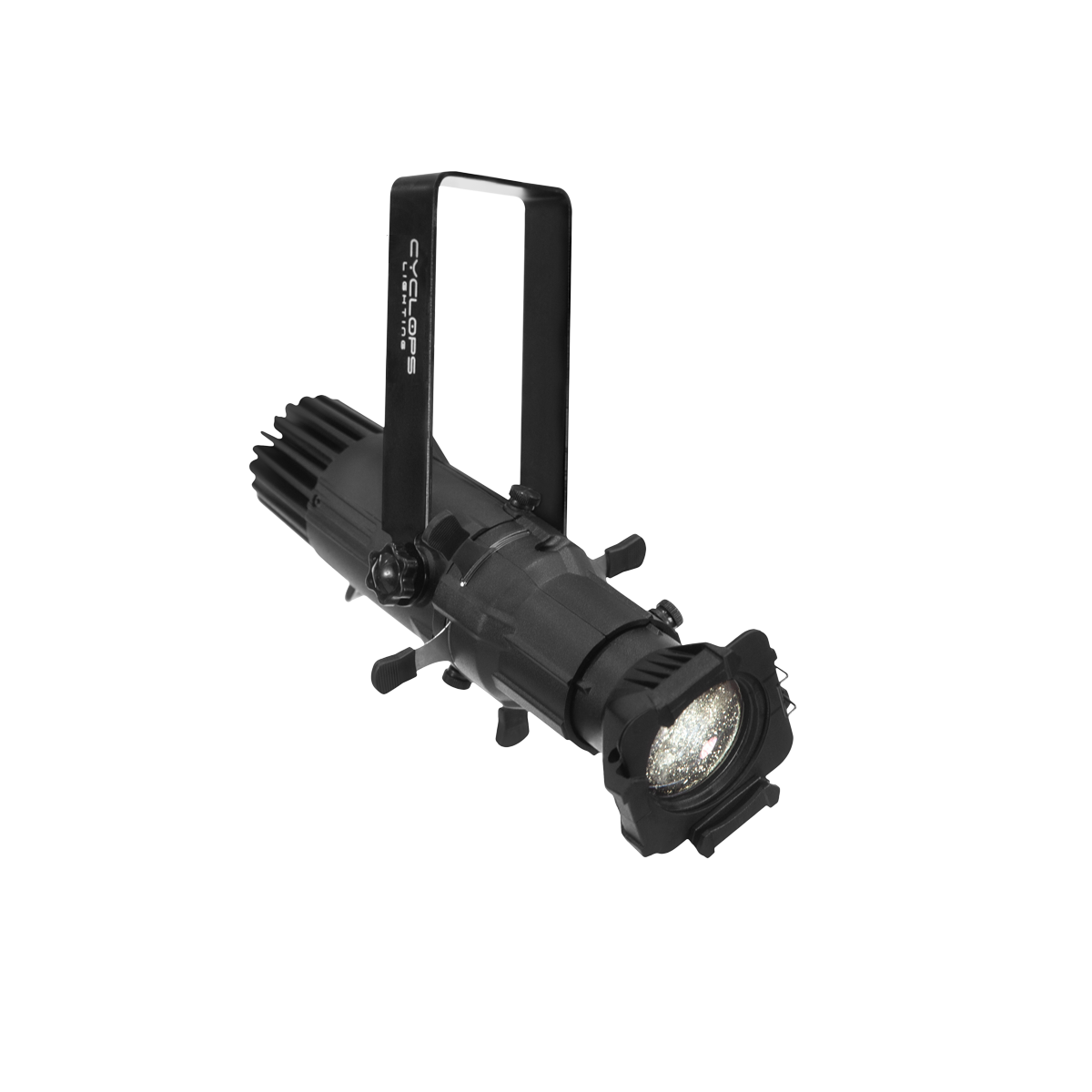

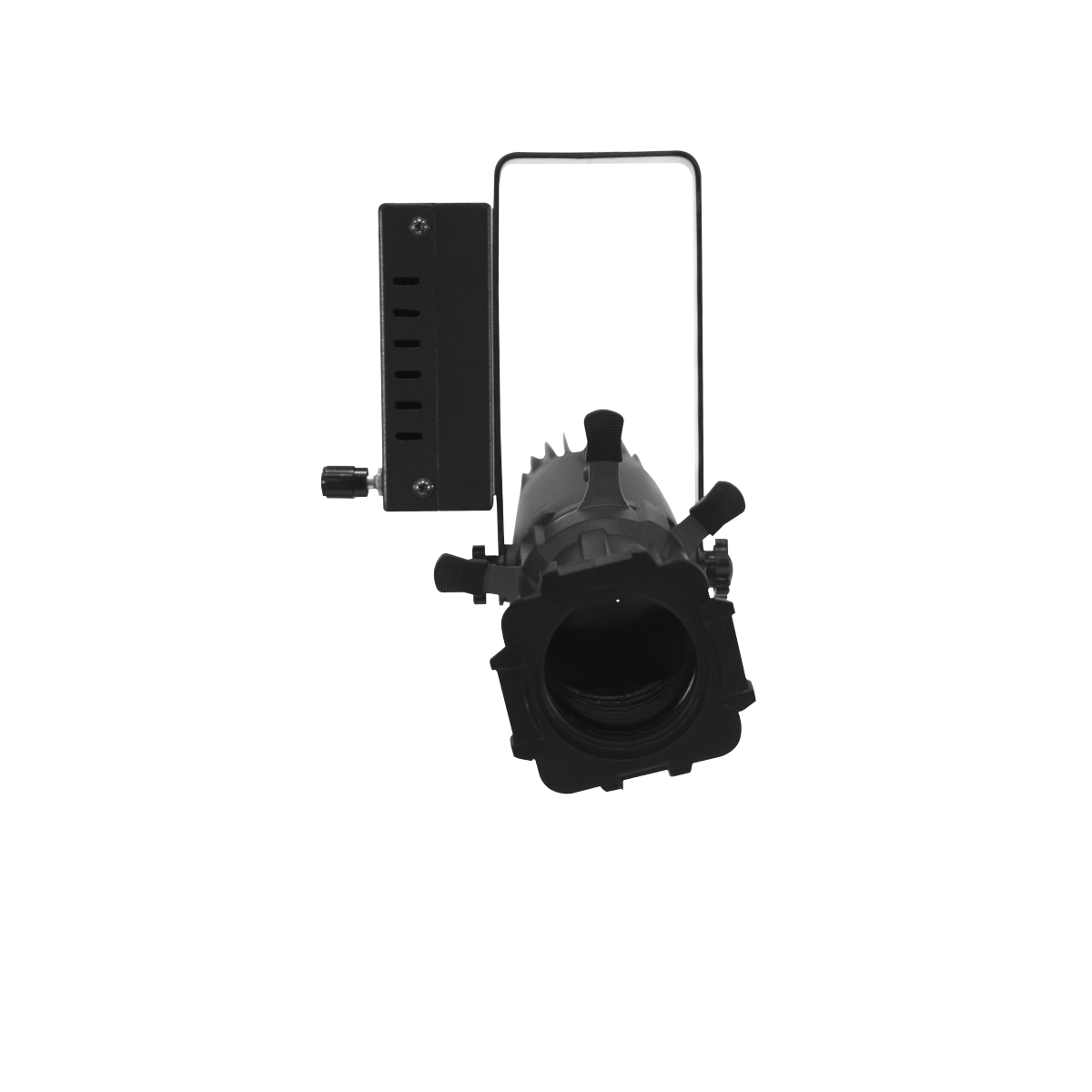

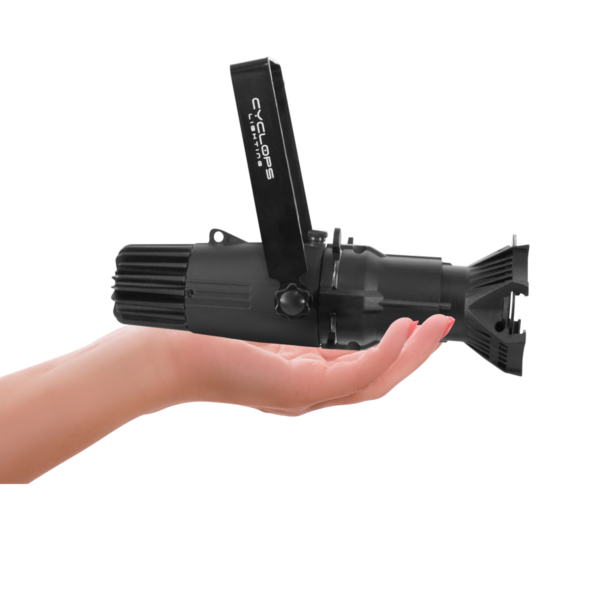

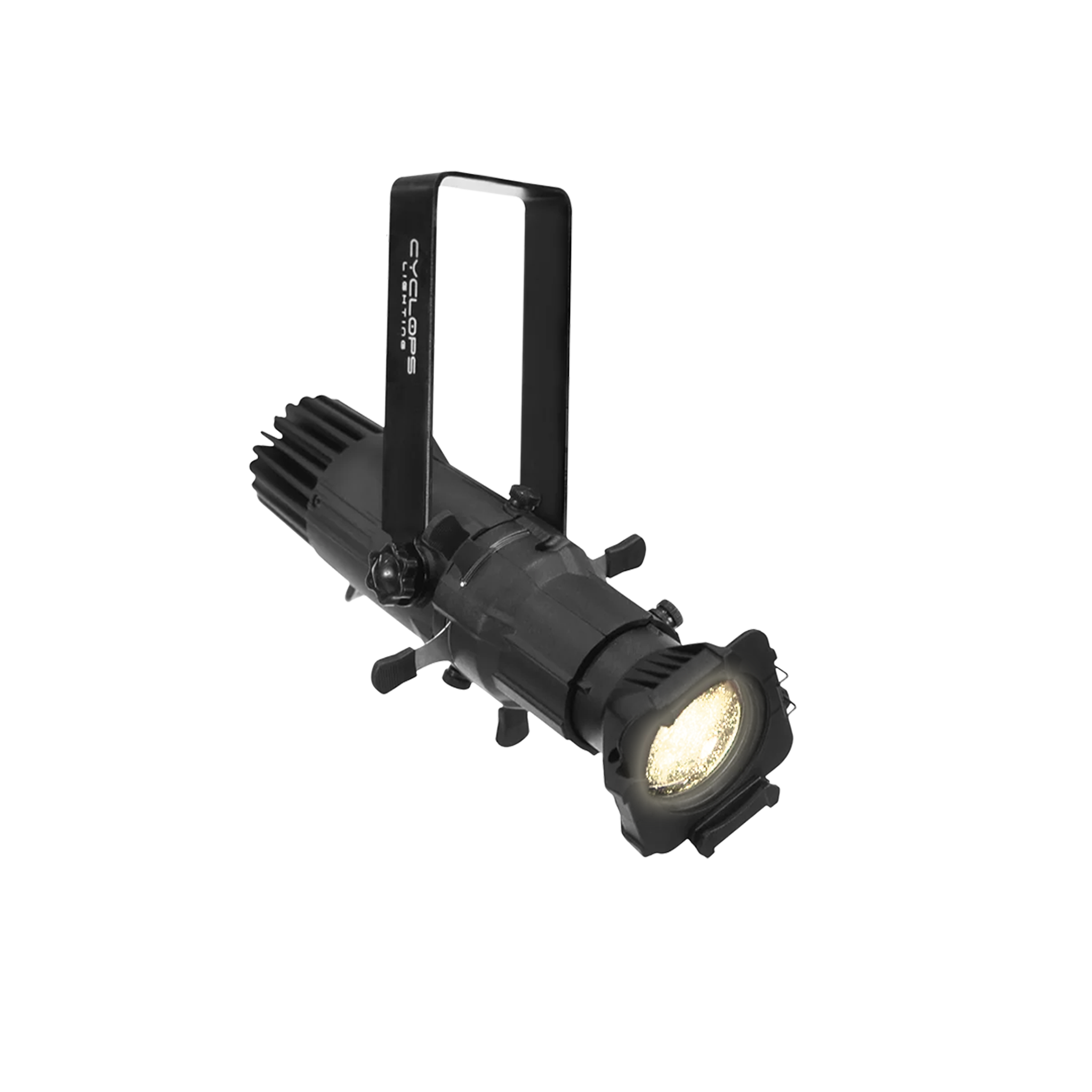

Mini portable LED profile

PR 20 features compact 30 cm LED profile spots, available in Cool White (PR 20C) and Warm White (PR 20W), each powered by a 20-watt COB LED. Both models deliver crisp projections with a high CRI of 92 and come with fixed lenses in 19°, 26°, 36°, or 50° options, ensuring an even field of light. For added versatility, optional Fresnel lenses are available for a wash effect, while DMX and Power track adapters allow for seamless control. These mini LED profiles are ideal for use in museums, art galleries, exhibitions, and retail environments.

SKU: PR20C-1 Categories: LED Profiles, Theatrical

SOURCE

Light source: 20 watts Cool White (PR 20C) or Warm White (PR 20W) LED
Color temperature: 5600 K (Cool White) / 3200 K (Warm White)
LED life expectancy: 50,000 hours

OPTICAL SYSTEM

Fixed lens: 19°, 26°, 36°, or 50°
Optional Fresnel lenses

PHOTOMETRICS

CRI (Color Rendering Index): >92
TM-30 Rf (Fidelity Index): >94
TM-30 Rg (Gamut Index): >102
TLCI (Television Lighting Consistency Index): >97

KEY FEATURES

2 Dimmer curves
Strobe effect
Video flicker-free
Silent operation

CONTROL & PROGRAMMING

Control protocols: Rotary, DMX
Control channels: 1, 3 channels

ELECTRICAL

Input voltage: AC 100-240V / 50-60Hz
Output: 20-42V / 600mA DC

CONNECTIONS

DMX connections: 3-pin XLR In/Out (male and female)
Power connections: 30-42V / 600mA adaptor

PHYSICAL

Dimensions: 295 x 130 x 120 mm
Net weight: 1.3 kg
Color: Black
Housing: Aluminum
IP rating: 20
Operating temperature: -5°C to 45°C

Lens Degree	19°, 26°, 36°, 50°
LED color	W (Warm White), C (Cool White)
