LumiGo™ BAR810

LumiGo™ BAR810

Battery-operated Outdoor LED Bar with CRMX and APP Control

The LumiGo™ BAR810 is a 50cm battery-powered outdoor LED bar featuring integrated CRMX wireless control and intuitive iOS / Android / Windows application compatibility for effortless customization.

Equipped with eight individually pixel-controllable 10W RGBW LEDs, the BAR810 delivers a bright and uniform wash with a native 20° beam angle. Its IP65 rating ensures reliable performance in any outdoor environment, making it a versatile fixture ideal for wash, dynamic effect, stage illumination, and film lighting applications.

The kit includes:

6 x LumiGo™ BAR810 (LGBAR810)
6 x 10°x60° Magnetic Frost Filter (FF1060-LGBAR810)

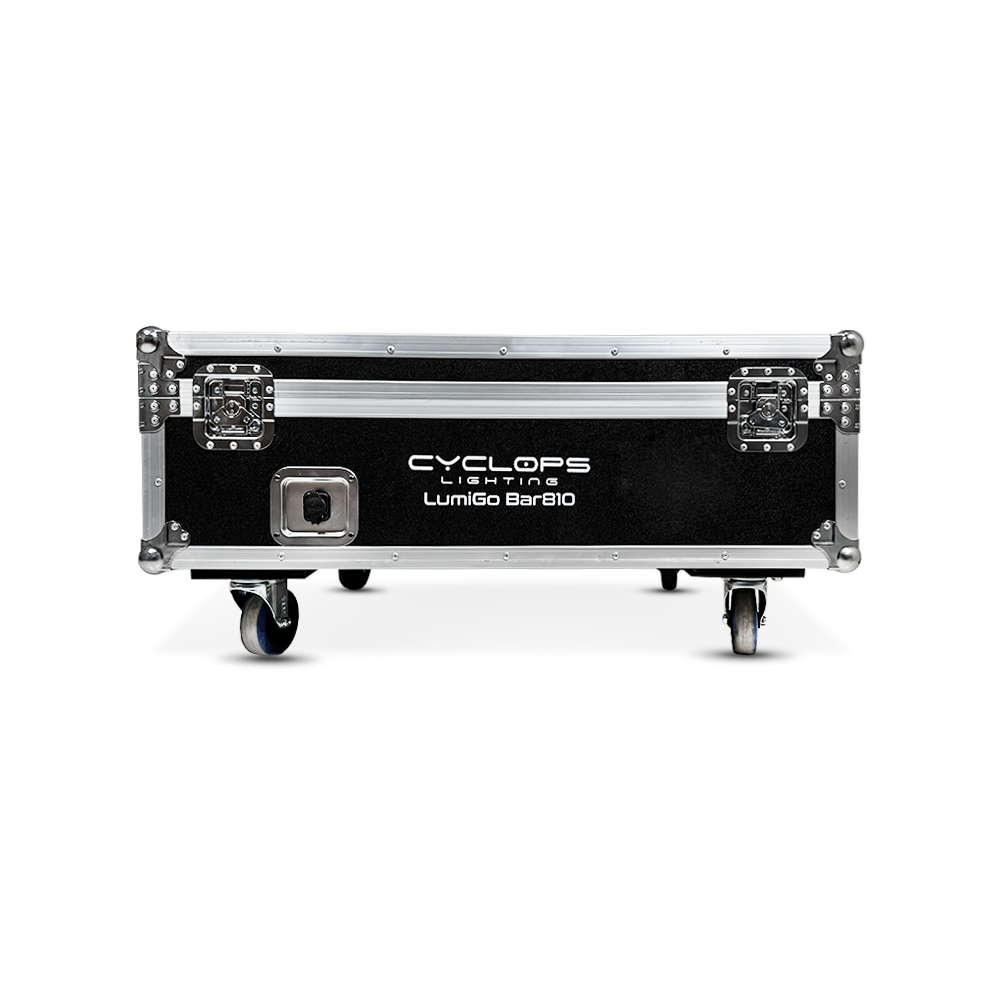

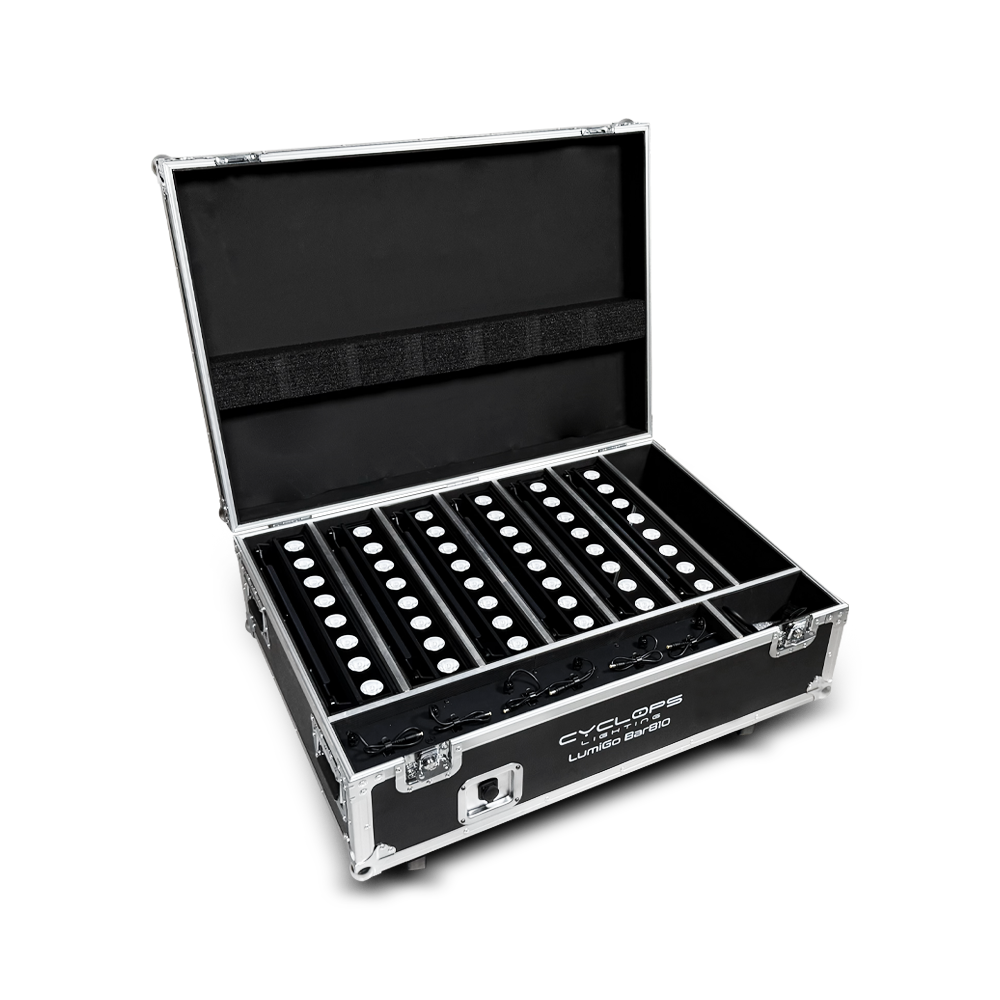

1 x Durable Flight Case (FC-LGBAR810)

SKU: LGBAR810-KIT6 Category: LumiGo™ Tag: NEW Series: LUMIGO

SOURCE

Light source: 8x10W RGBW LED
Output:

– Light output all LEDs on:1478 lm

– Light output red:294 lm

– Light output green:629 lm

– Light output blue:103 lm

– Light output warm white:495 lm

Illuminance:

– Lux @ 2m:4402 lx

– Lux @ 5m:704 lx

– Lux @ 8m:275 lx

– Lux @ 10m:176 lx

LED Life expectancy: 50,000 hours

OPTICAL SYSTEM

Beam angle: 20°
Optional Frost filter: 10×60° (SKU: FF1060-LGBAR810 – included in kit LGBAR810-KIT6)

DYNAMIC EFFECTS

Dimmer: 0-100% linear adjustment
Four dimming curves
Color mixing: RGBW
Color temperature adjustments: 3000 to 10000K
Electronic Strobe: 0-20 Hz

CONTROL & PROGRAMMING

Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
Channel mode: 3, 8, 12, 32, 37 channels
Display: TFT Display

BATTERY
