SOURCE
- Light source: 16 x 10 watts, 4 in 1 RGBW LEDs
- LED life expectancy: 50,000 Hrs.
OPTICAL SYSTEM
- Beam angle: 20°
- Optional 15° Frost Filter (FF15-CPX160)
- Optional Single Barndoor (BD-CPX160)
DYNAMIC EFFECTS
- Dimmer: 4 selectable dimming curves
- Color mixing: RGBW
- Strobe and fade effect
- Built-in color and dynamic macros
CONTROL & PROGRAMMING
- Control protocols: DMX, RDM, Auto Run
- Display : TFT displayer with 4 buttons
- Control channels: 3, 8, 12, 32, 37 CHs
ELECTRICAL
- Input voltage: AC100-240V/50-60Hz
- Power consumption: 180 watts

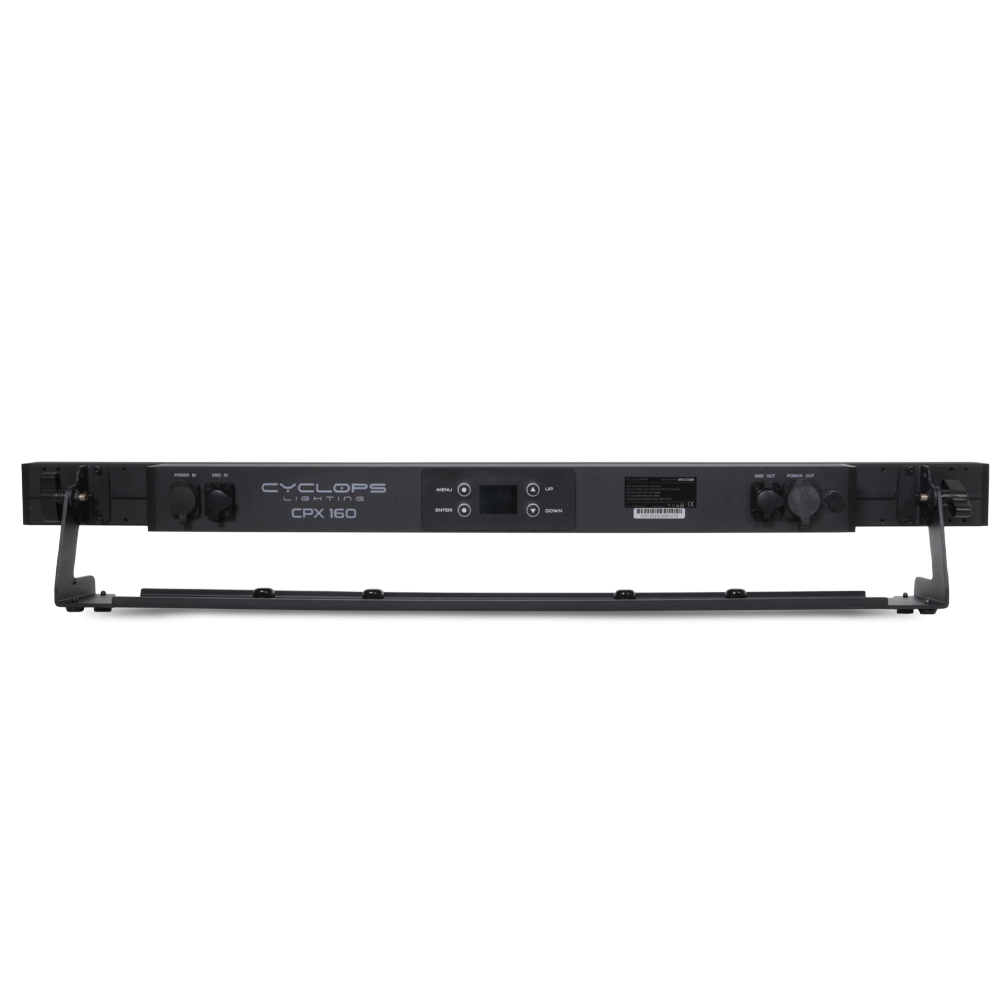

CONNECTIONS
- DMX connections: IP65 Seetronic 3 pin XLR In/Out
- Power connections: IP65 Seetronic PowerCon In/Out

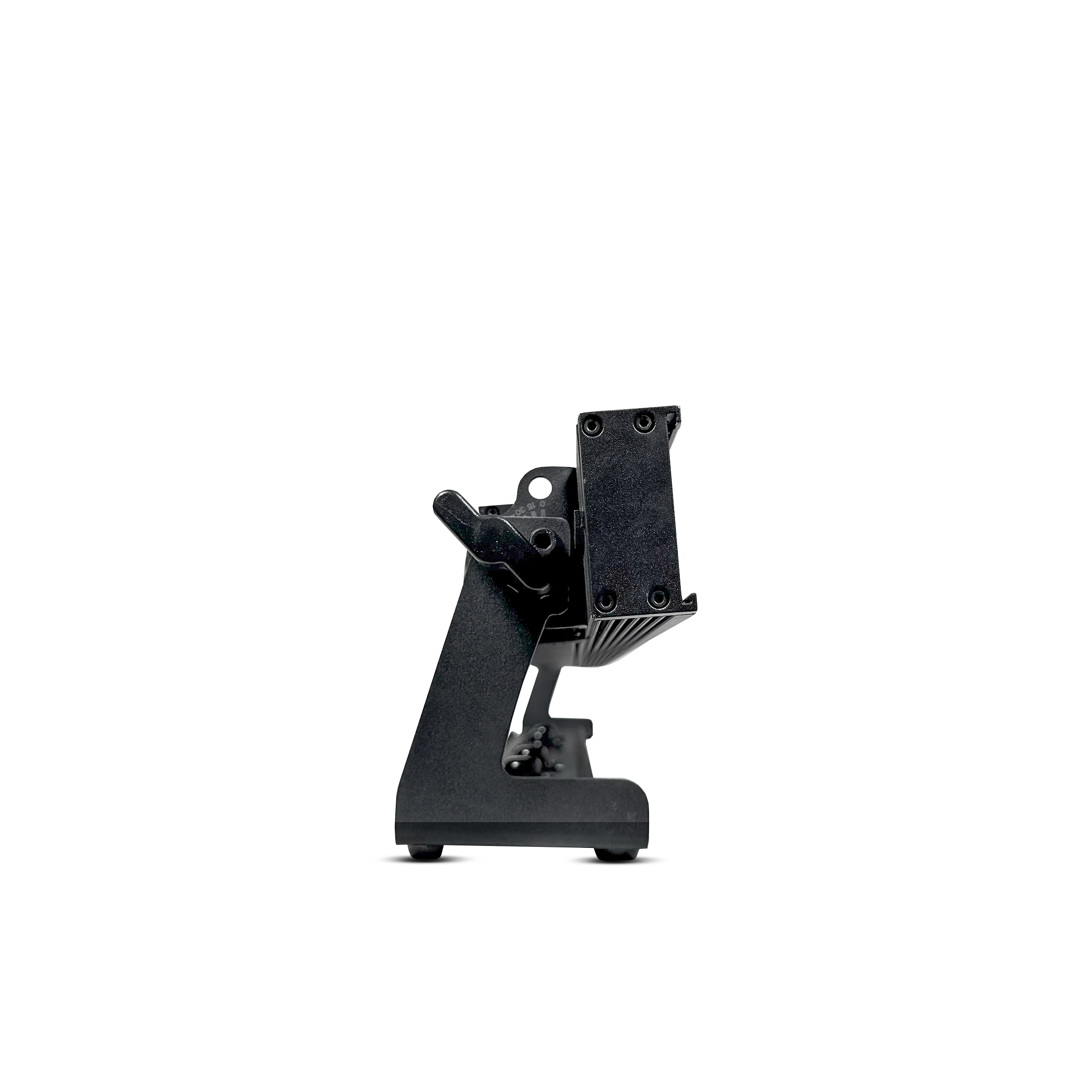

PHYSICAL
- Dimensions: 1000 x 90 x 113 mm
- Net weight: 5.5 Kg
- Color: Black
- Housing: Aluminum
- Anti UV and Salt coat painting
- IP rating: 65
- Operating temperature: -20°C/45°C
