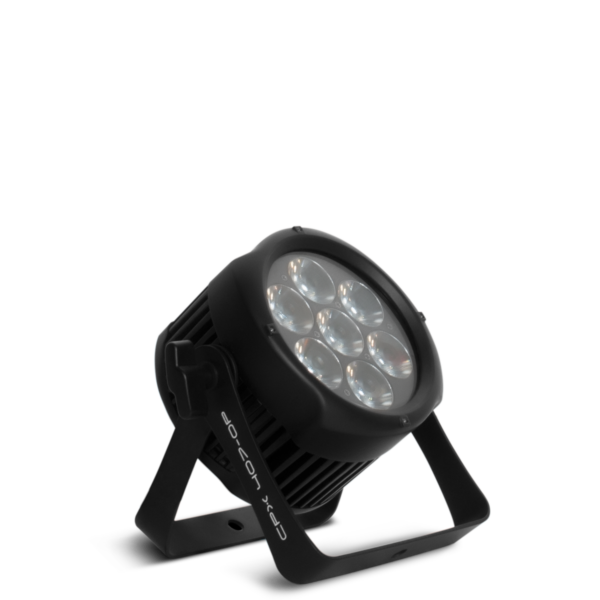

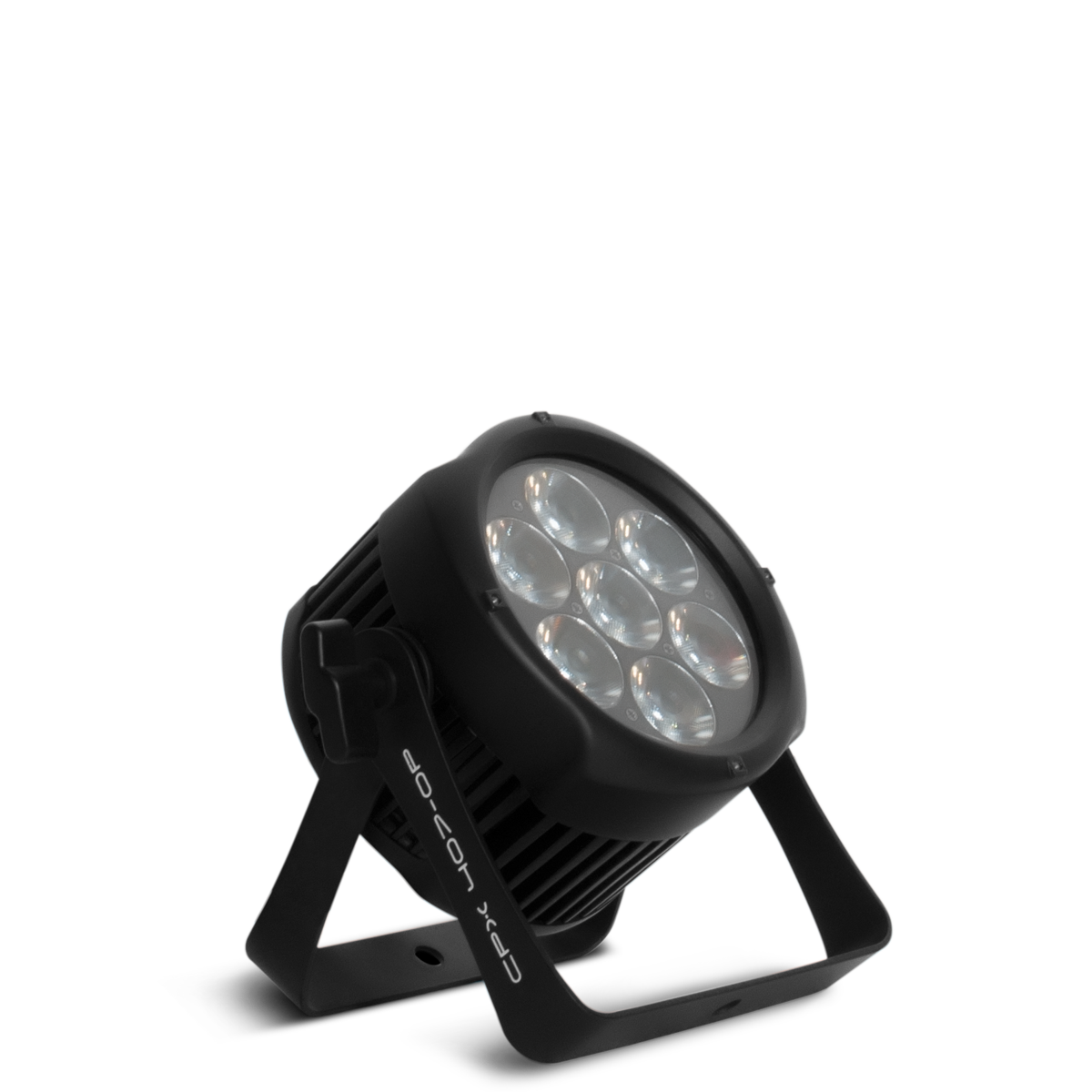

CPX 407OP

SOURCE

• Light source: 7 x 15 watts RGBW quad LEDs
• LED life expectancy: 50,000 Hrs

OPTICAL SYSTEM

• Beam angle: 10°

• 40° with included diffuser filter

DYNAMIC EFFECTS

• Dimmer: 4 selectable dimming curves
• Color mixing: RGBW
• Strobe and fade effect
• Built-in color and dynamic macros

CONTROL & PROGRAMMING

• Control protocols: DMX, Master-Slave, Auto Run
• Display: TFT displayer with 4 buttons
• Control channels: 3, 4, 5, 6, 8, 11 CHs


ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 110 watts

CONNECTIONS

• DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
• Power connections: IP Power In/Out cable, 3 pin screw lock connectors

PHYSICAL

• Dimensions: 219 x 113 x 225mm
• Net weight: 3.4 Kg
• Color: Black
• Housing: Aluminum
• IP rating: 65
• Operating temperature: -30°C/45°C
