CPX180OB

CPX180OB

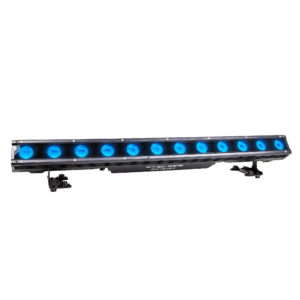

Outdoor RGBW LED Wash Bar

Elevate your outdoor lighting design with the CPX180OB-06 and CPX180OB-20, two high-performance RGBW LED wash bars built for a variety of architectural and entertainment applications. Both models feature 12 x 15W RGBW LEDs, each individually controllable, providing rich, vibrant color mixing and exceptional versatility.



CPX180OB-06, with a focused 6° beam angle, delivers precise, narrow beams ideal for highlighting architectural features, creating sharp effects, or delivering accent lighting in large outdoor spaces. CPX180OB-20, offering a wider 20° beam angle, is perfect for broader wash effects and larger coverage areas, ideal for illuminating expansive landscapes or large-scale event setups.



Both bars are built to withstand the elements with an IP65 rating, ensuring reliable performance in any outdoor environment. Whether you’re designing dramatic lightscapes, enhancing stage productions, or adding a dynamic architectural touch, the CPX180OB Series offers flexible and powerful lighting solutions tailored to your needs.

SKU: N/A Categories: ,

SOURCE

  • Light source: 12 x 15 watts, 4 in 1 RGBW LEDs
  • Color temperature: 2700K – 8000K
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle:
    • CPX180OB-06: 6°
    • CPX180OB-20: 20°

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Strobe effect

CONTROL & PROGRAMMING

  • Control protocols: DMX and RDM is available
  • Control Channels: 3, 7, 11, 48 & 52CH
  • Four buttons with TFT LED Displayer

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 140 watts

CONNECTIONS

  • DMX Connections: Seetronic IP65 XLR input and output
  • Power Connections: Seetronic IP65 true 1 power input and output

PHYSICAL

  • Dimensions: 1000 x 94.5 x 160.9mm
  • Net weight: 5.4 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
